2CX Chassis Link Tab Kit

Link tab kit for the 2CX Chassis.

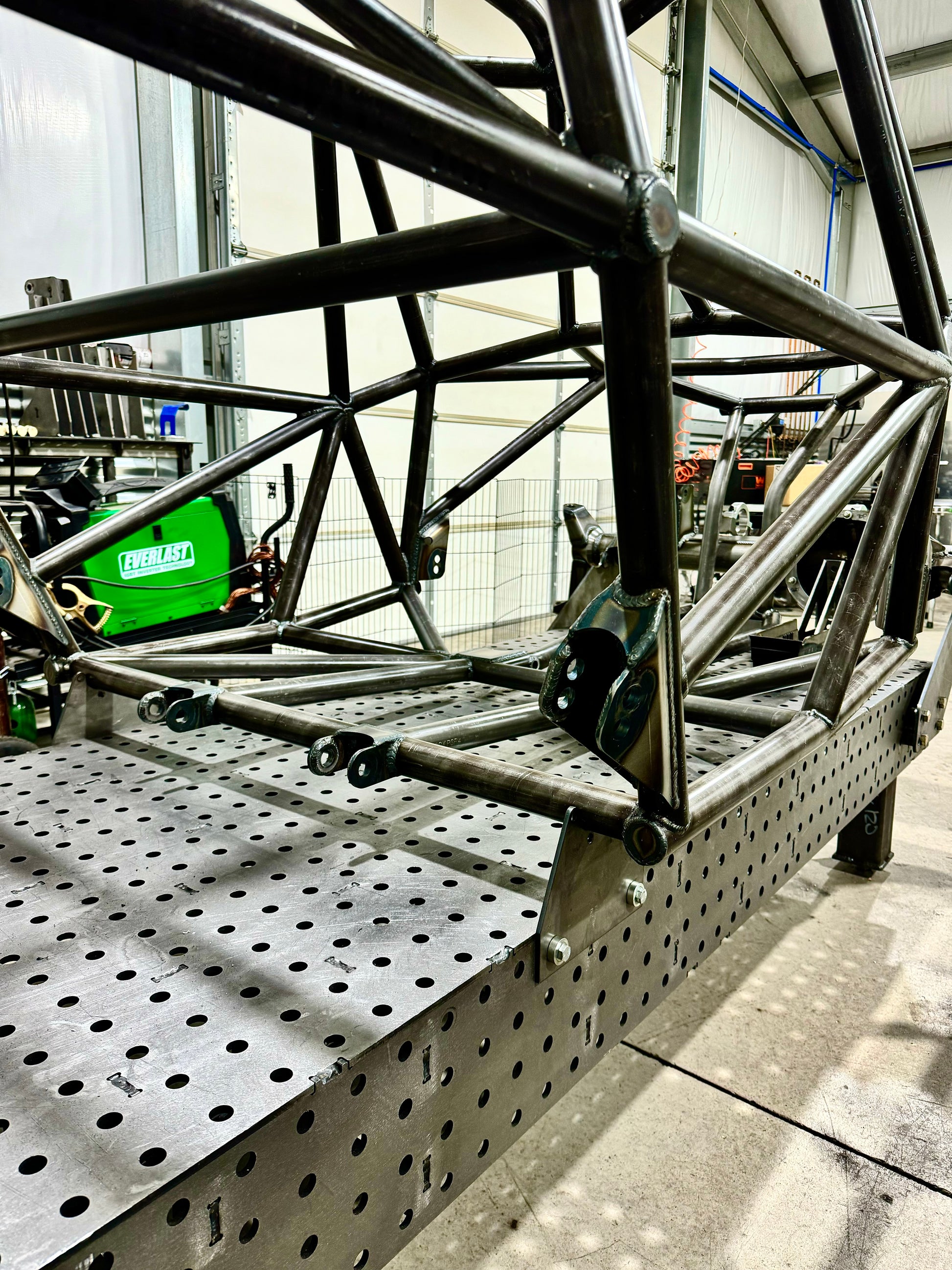

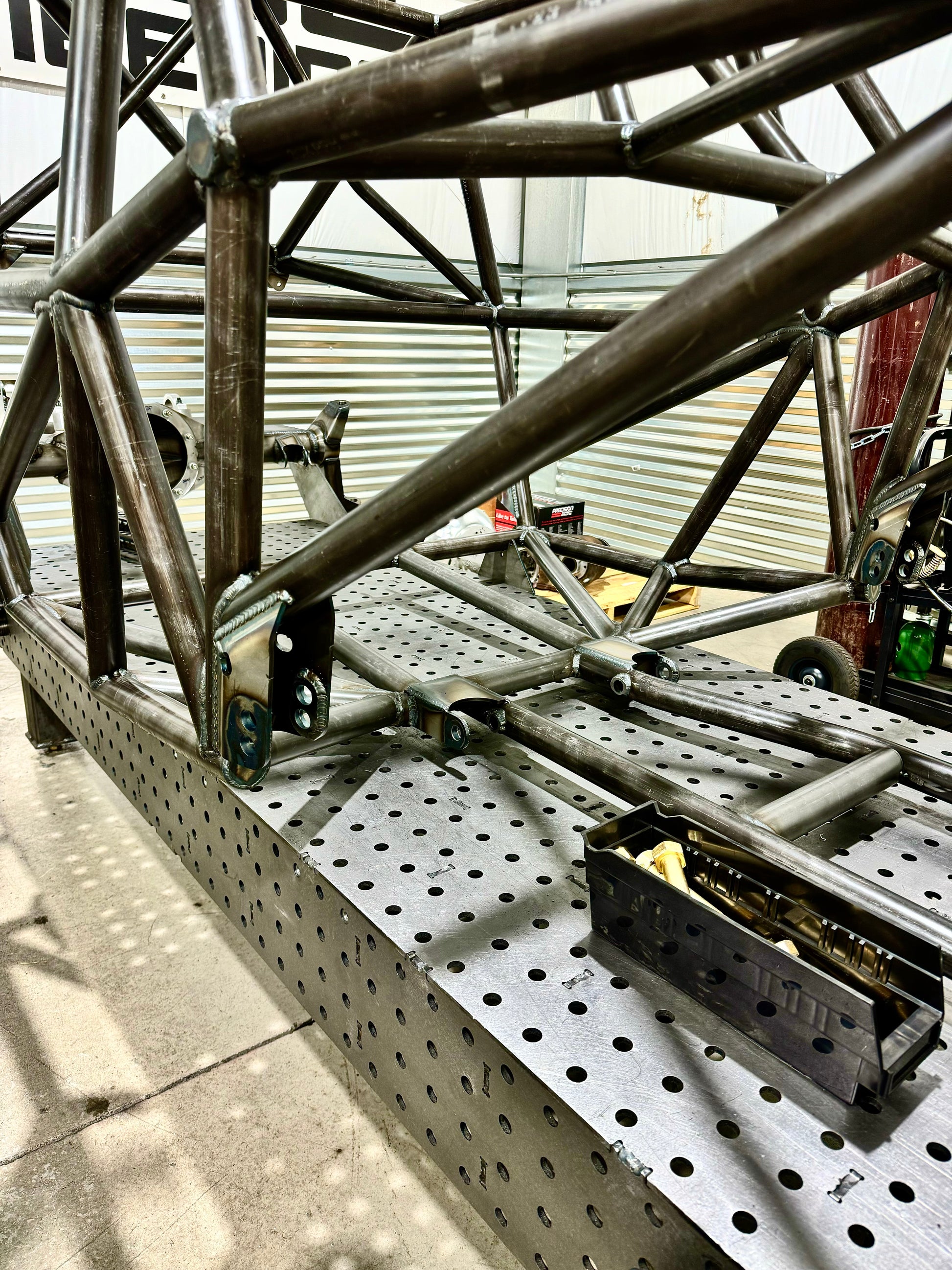

These are laser cut out of 3/16" HRPO. These are for the chassis side only. Includes front and rear lower link and upper link tabs along with weld washers for each tab. These are made for 2" width joints only, they will not fit 2.625" width joints. Tabs can fit 1.25" heims or 7/8" heims with a 3/4" bolt.

If running 1.25" heims, you will need to order these heim misalignment spacers from Kartek to achieve a 2" mounting width (part# KTKHMA10034JR).

17-4 Stainless Steel Misalignment Spacer For 1" Heim Or Uniball For 3/4" Bolt 2" Stack Height - Kartek Off-Road

Installation note - Weld washers get welded on the inside of the tab butted up next to the heim joint, not the outside.
