GM 3.9L V6 Motor Mount Plates
GM 3.9L V6 Motor Mount Plates

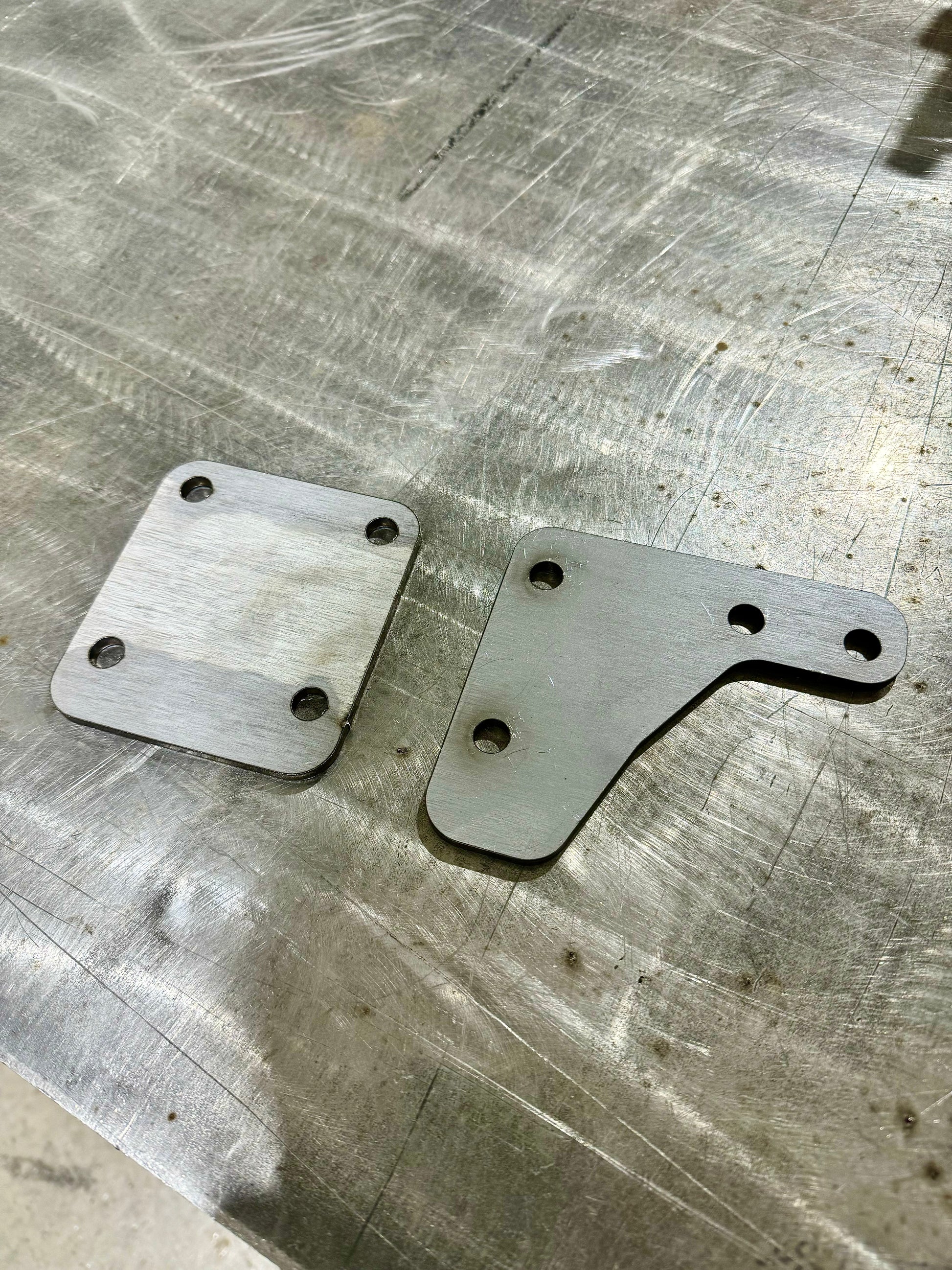

Motor mount plates for the GM 3.9L 60* V6 such as the LZ9.
Universal traditional style motor mount plates to build your own motor mounts off of to your specific chassis. These are laser cut out of 3/16" HRPO. Enough flat space between the 4 M10 mounting holes per side to attach a 1.75" tube. I usually run these plates on the block with a 1.75" DOM tube standoff to a poly bushing welded to the end of the tube, then tabs mounted off the chassis to attach to. I use universal poly bushings from WFO with a 1/2" bolt, the advantage to these bushings is they also sell aluminum bushing inserts so you can use the same mount but have a solid mounted drivetrain or just use the aluminum bushing for mockup and welding to prevent melting your poly bushing.
YJ Large Bushing Kit (wfoconcepts.com)
YJ Large Aluminum Set Up Bushing Kit, 3/4" ID Hole | WFOConcepts.com
Includes one plate for each side only. Tube, hardware, bushing, tabs, etc are not included.

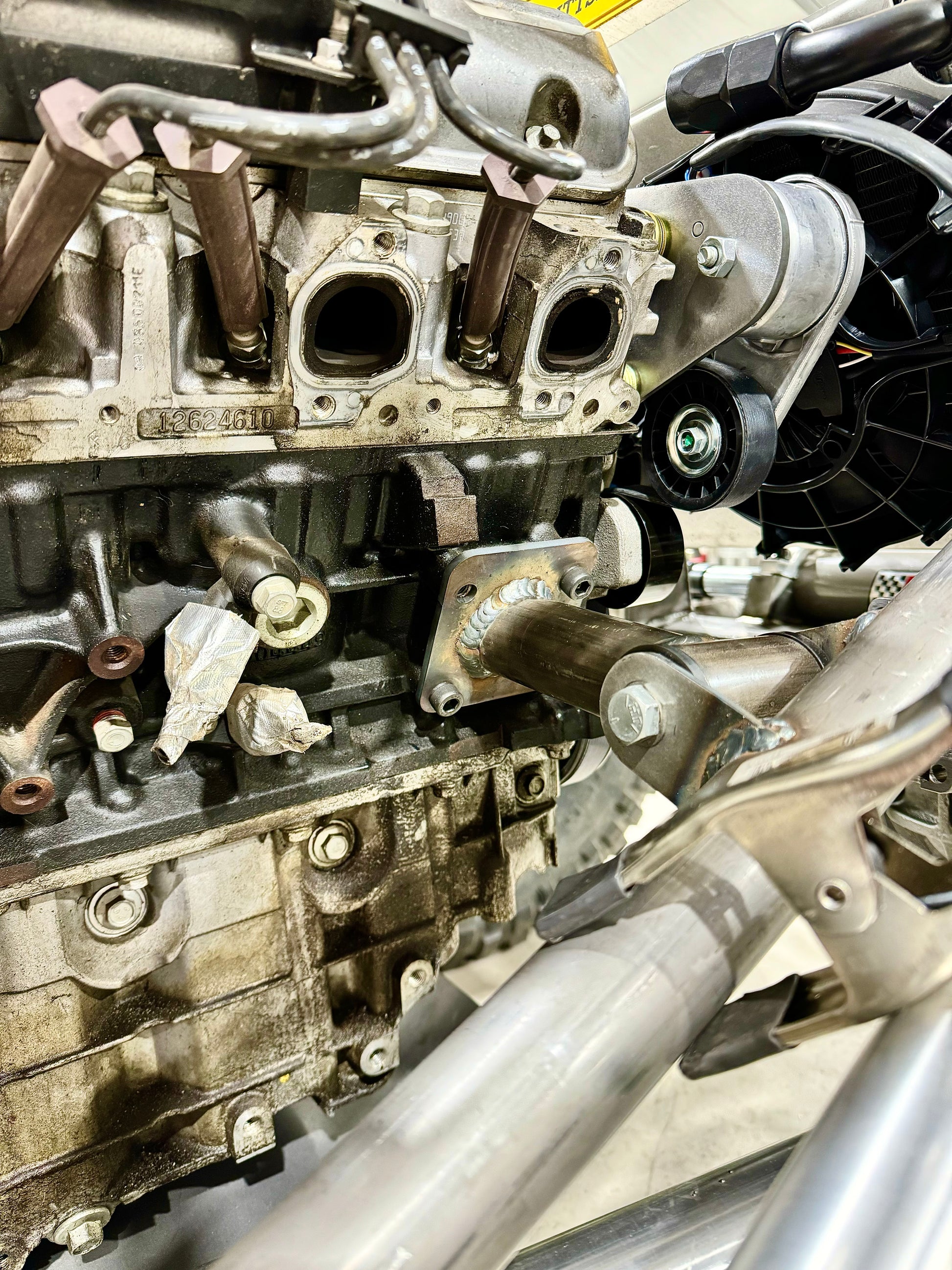

Rectangle plate for passenger side, side with longer offset goes up.

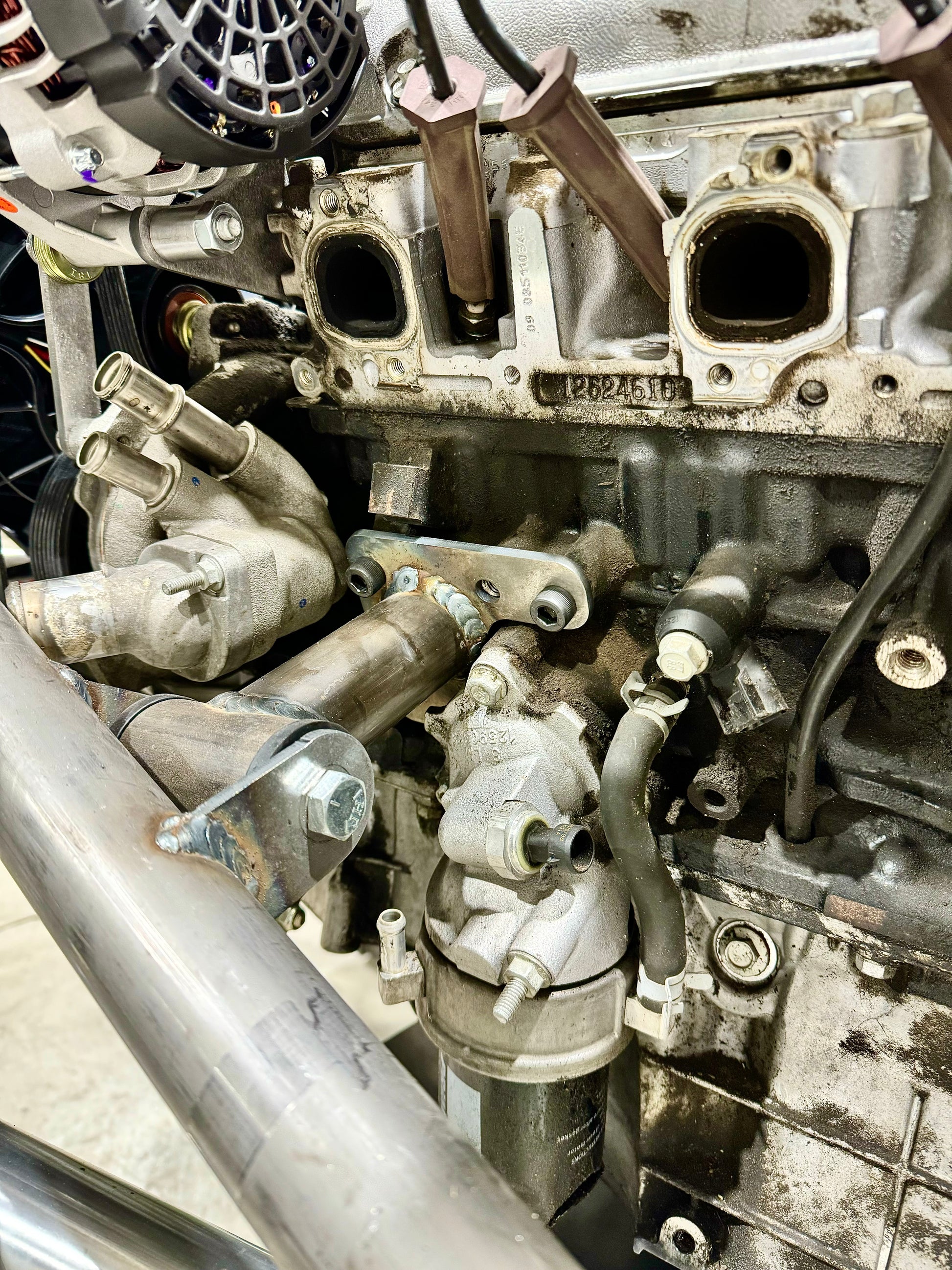

Pointed tab for driver side.
