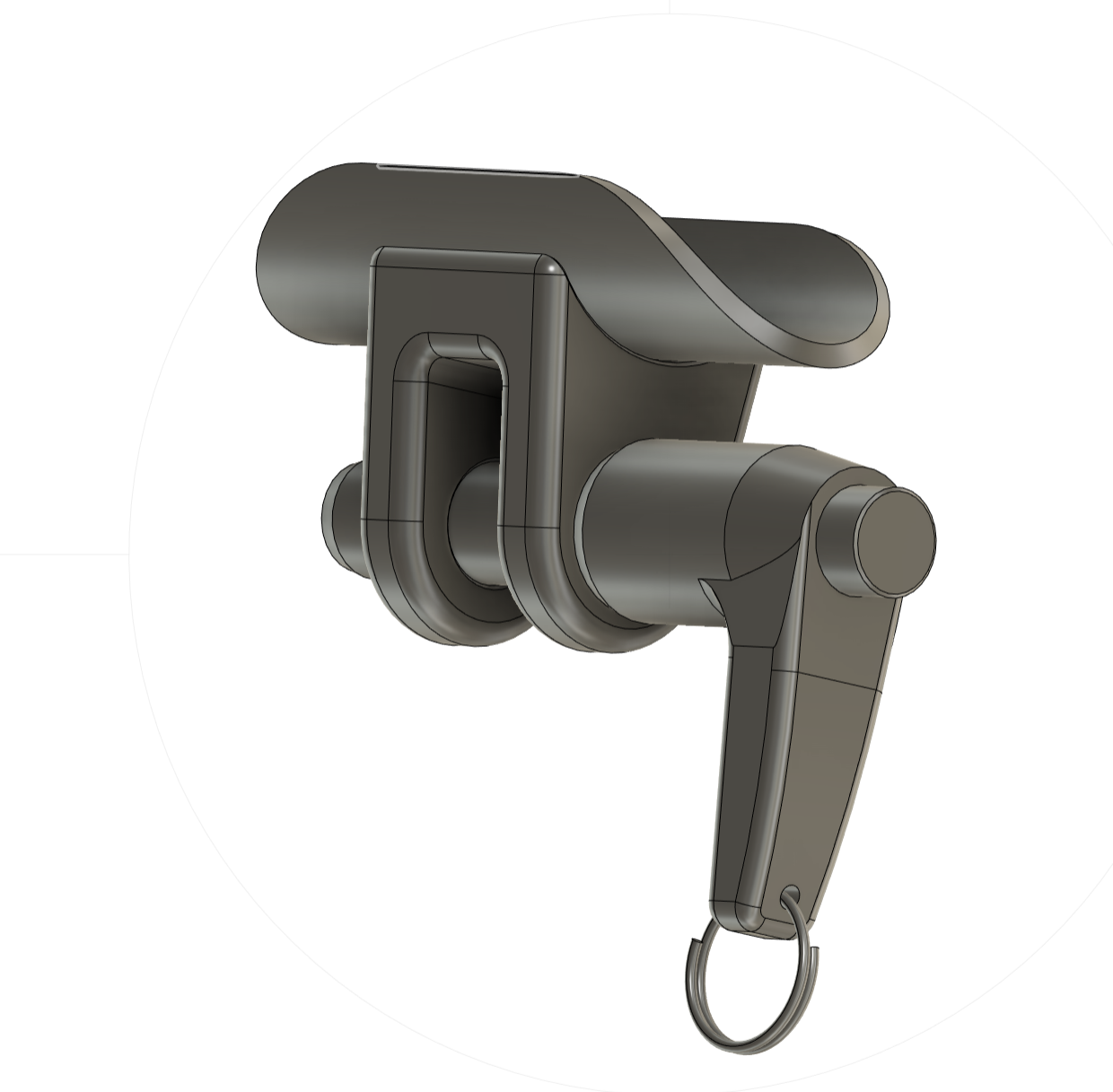

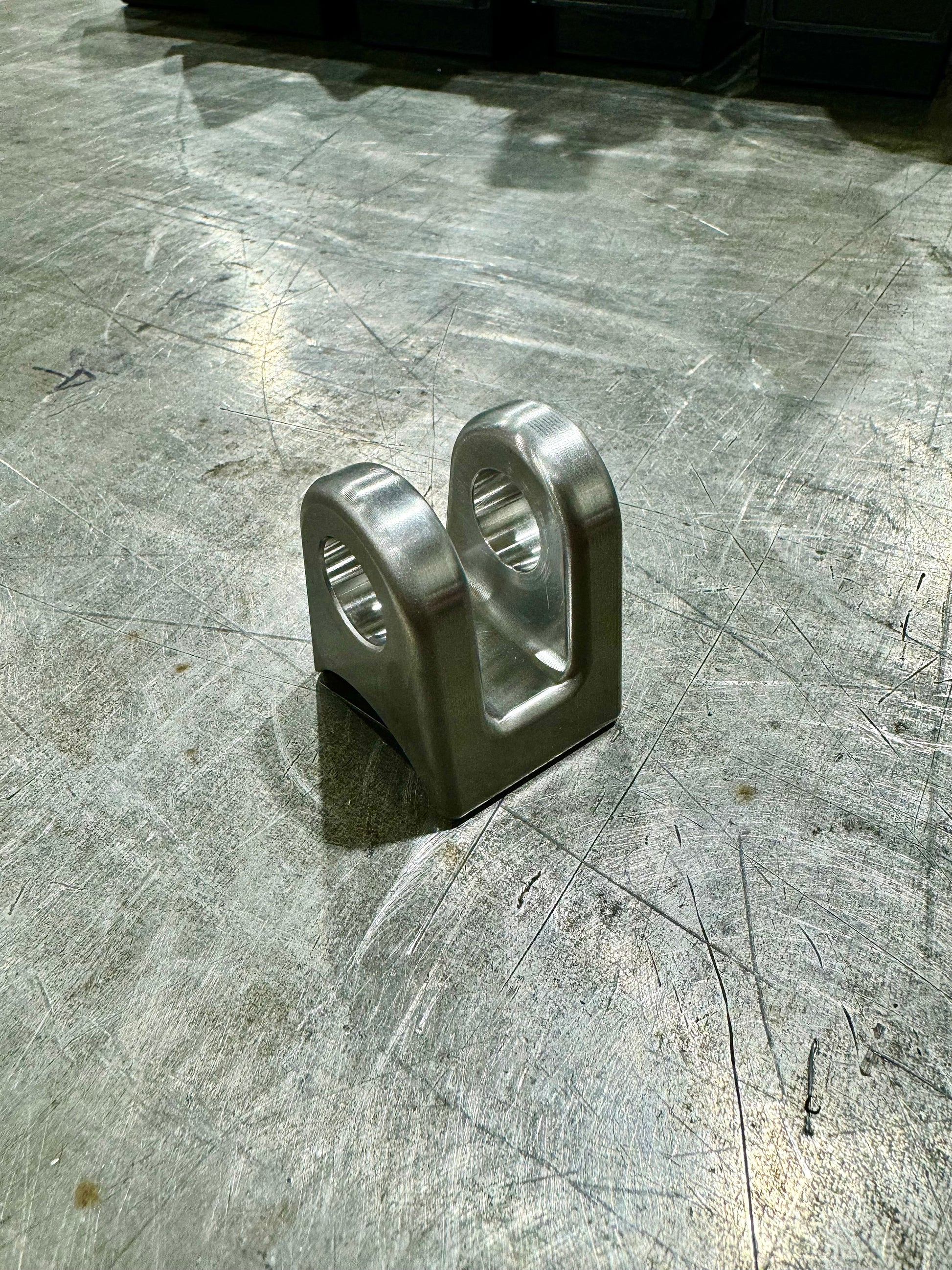

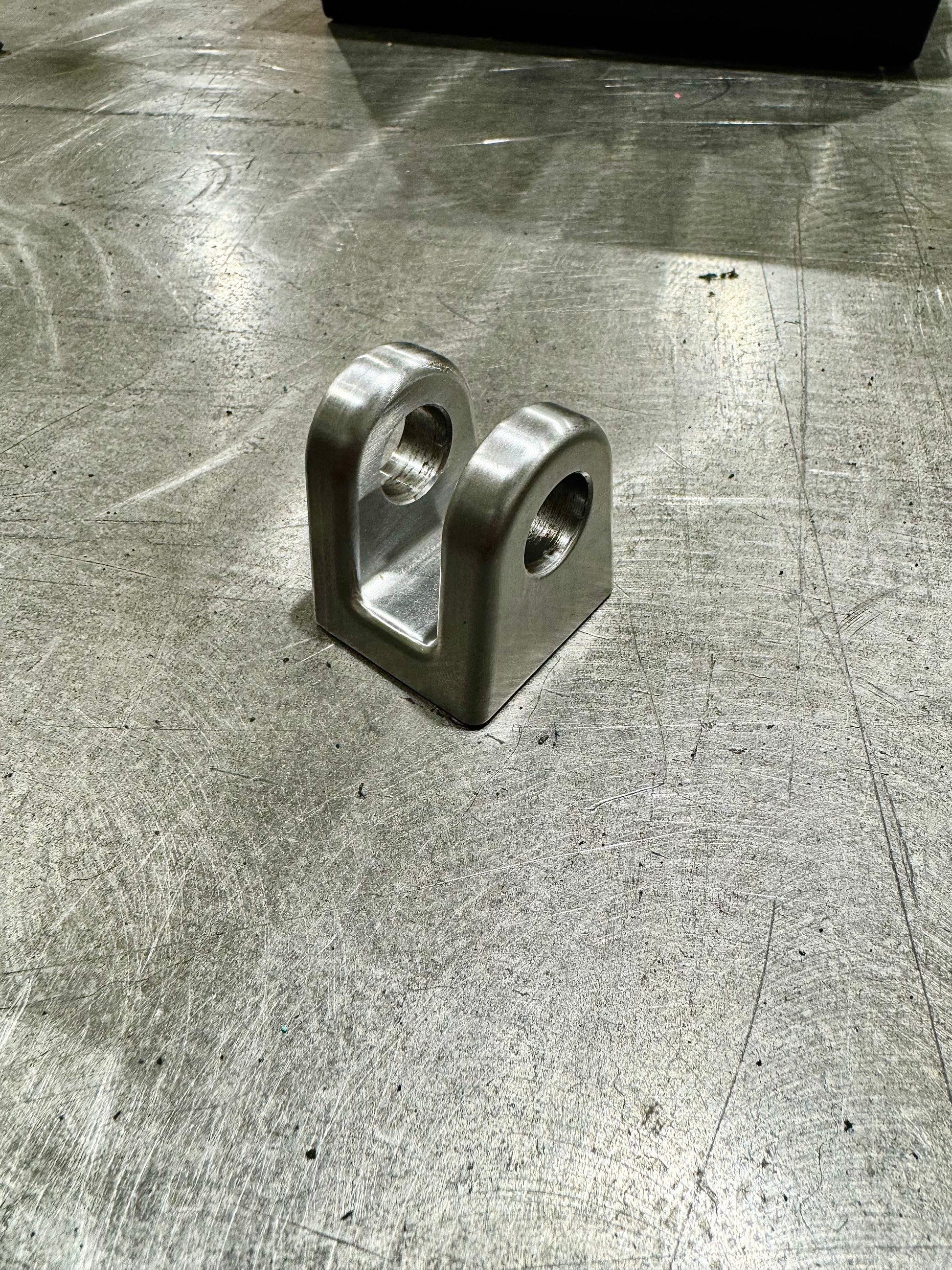

These are a billet 4140 Chromoly suck down winch attachment point for mounting to 1.75" or 1.5" tube.

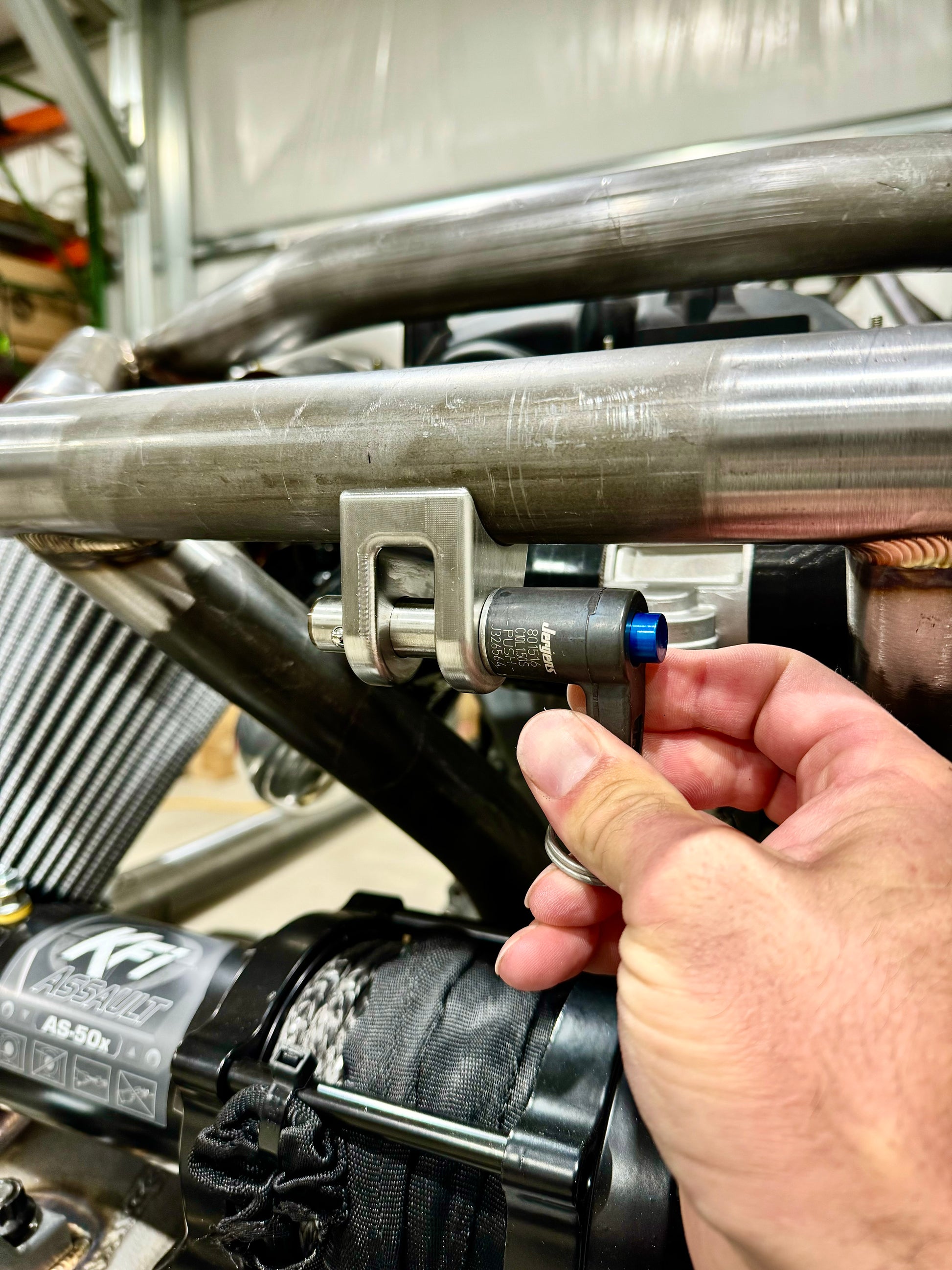

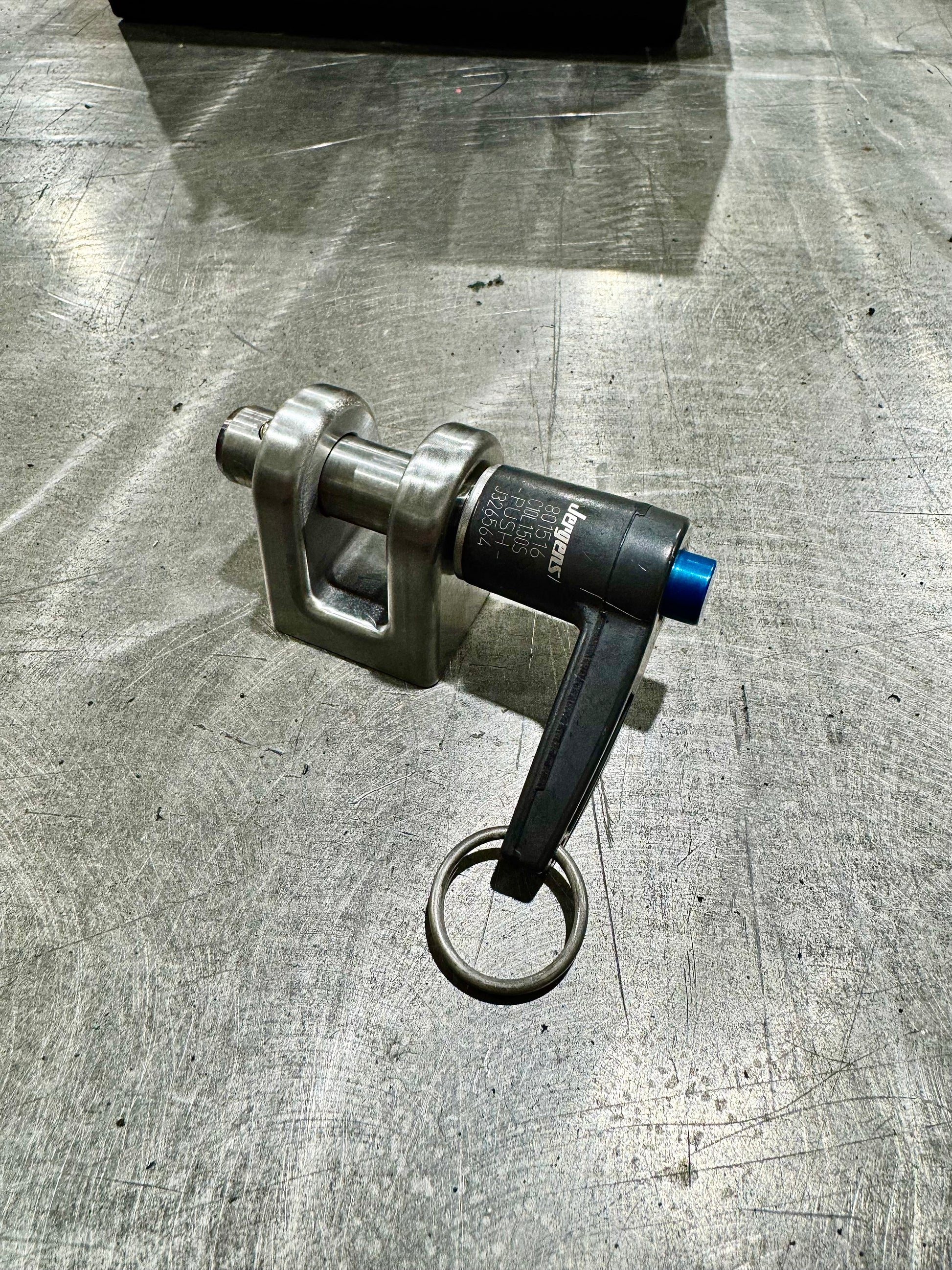

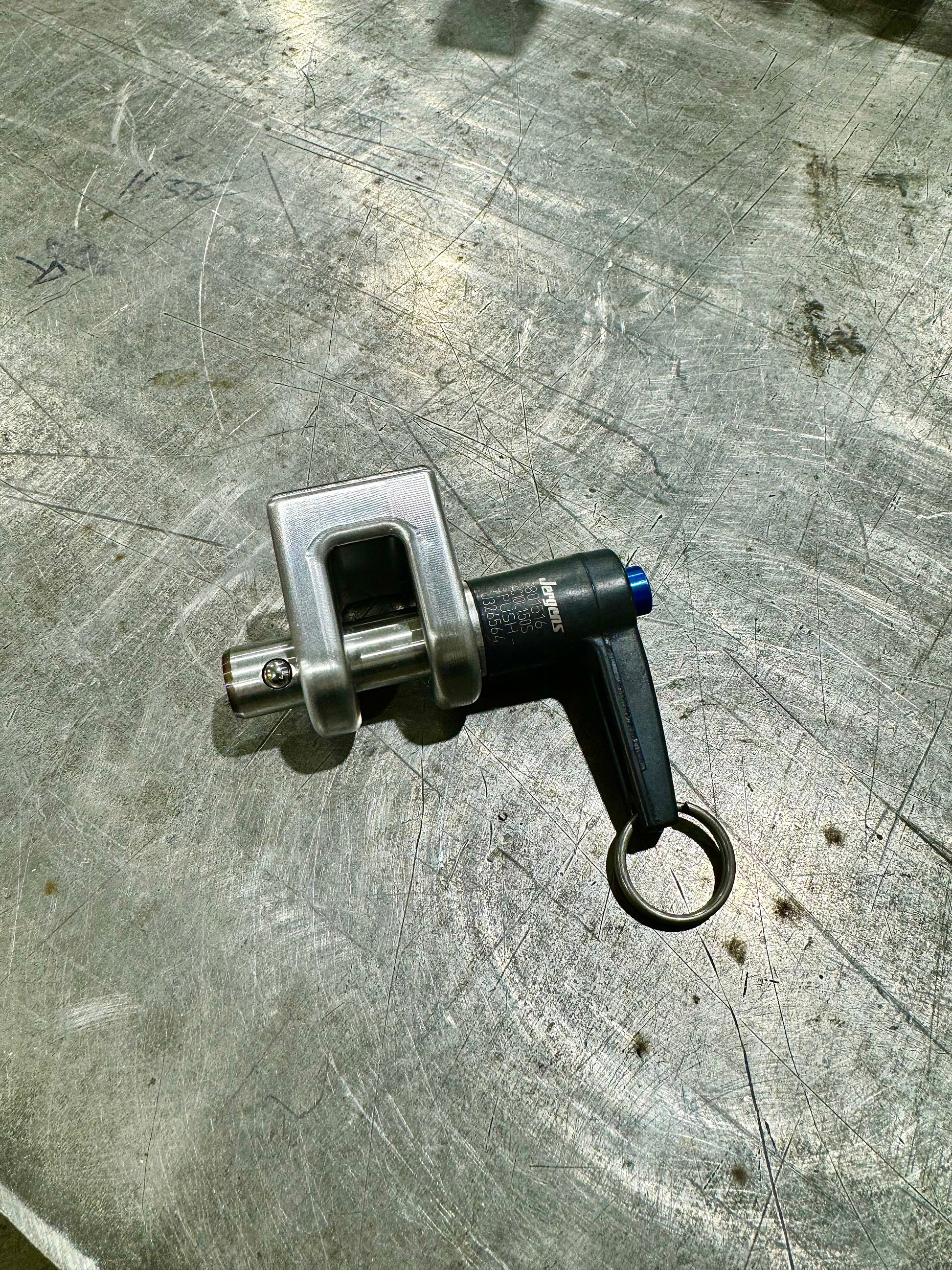

Securely attach your suck down winch line to this attachment point for use with a quick release 5/8" pin for easy and secure removal for winching and attaching for suck down line. Works with a 5/8" quick release detent pin, 5/8" bolt, 5/8" clevis pin, or any other 5/8" shaft with at least 1.5" of usable shank.

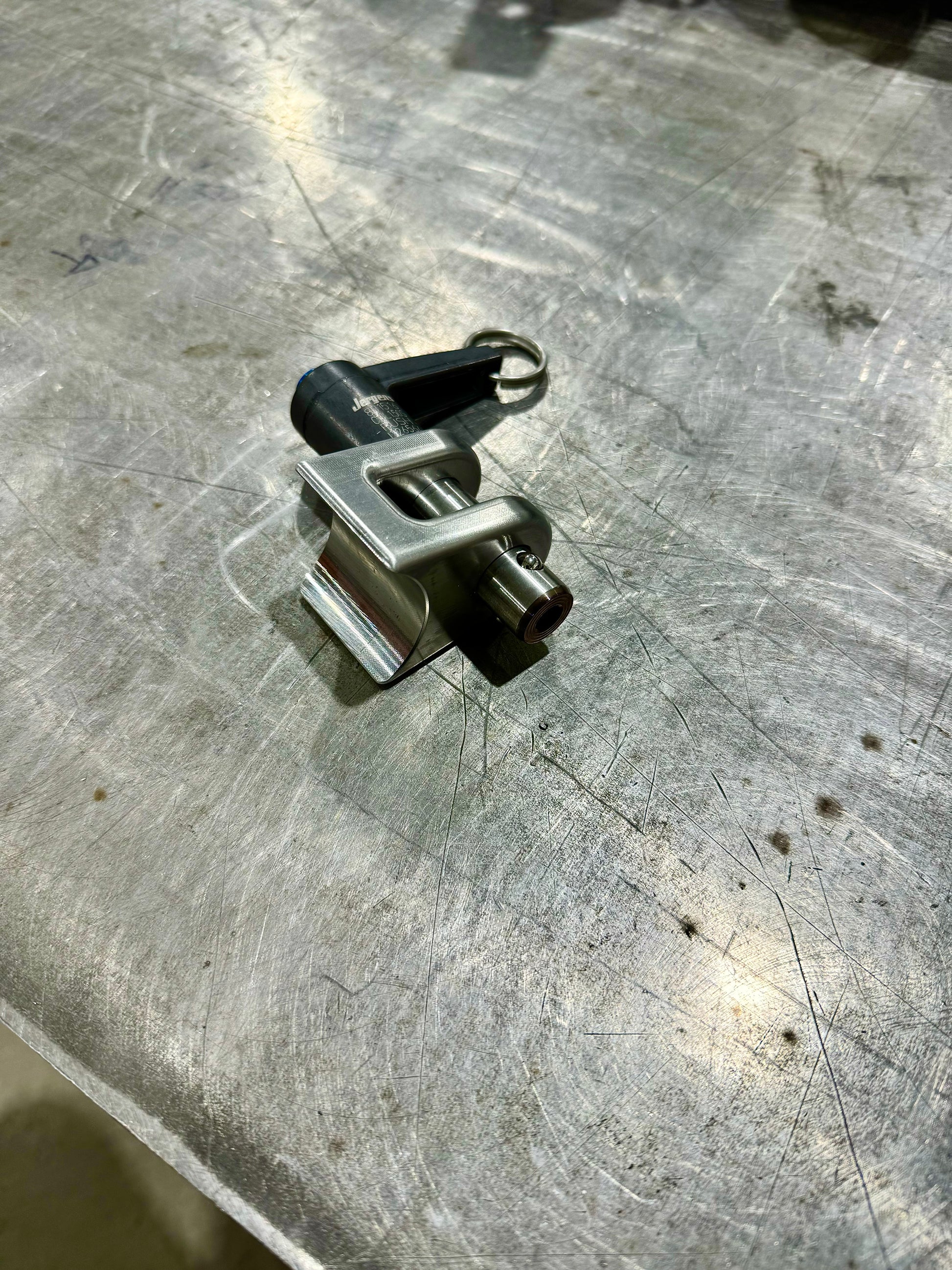

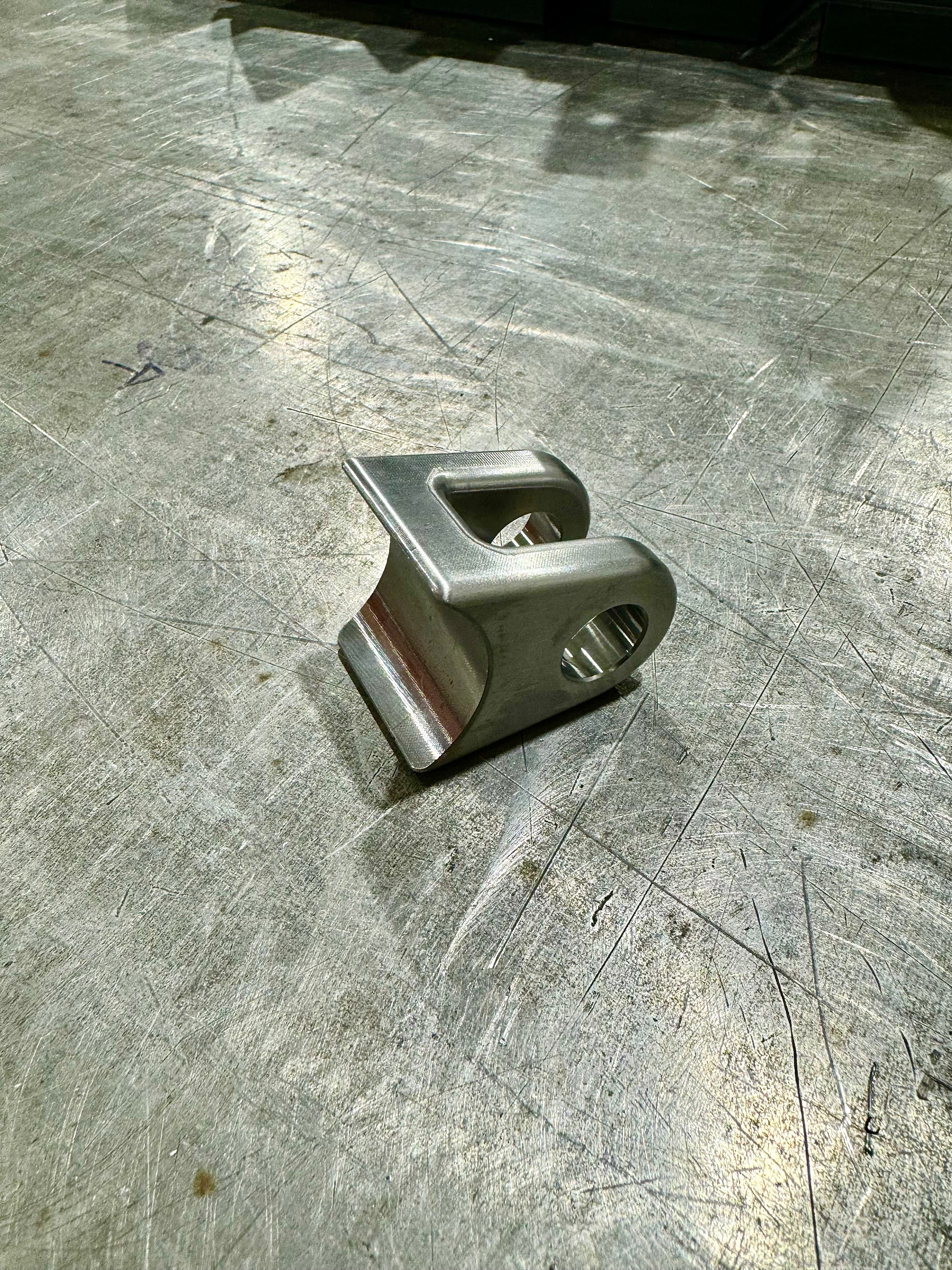

1.5" tube option includes a laser cut sandwich plate of 1.75"x0.120" wall tube to adapt the 1.75" billet mount to the smaller tube and help spread out the load over a wider area.
Price includes 1 billet mount. Quick release pin/bolt/shaft is NOT included, style of choice will need to be supplied by customer. Link to recommended quick release pin below as shown in picture,
Designed to fit 1.75" or 1.5" tube only. Designed for smaller UTV sized winches and winch line, will also fit full size winches and winch line but might not fit all full size steel winch eyelets.
