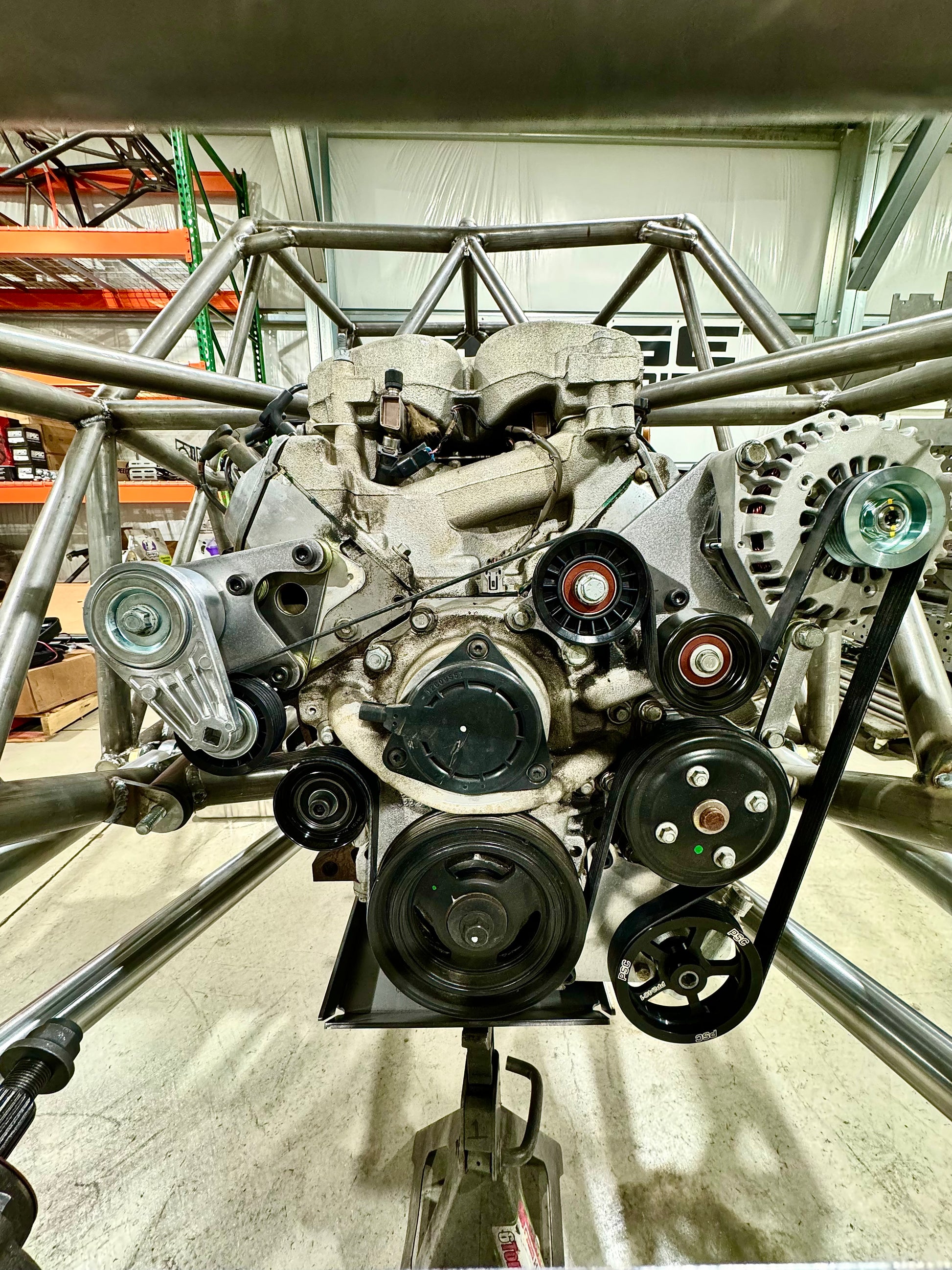

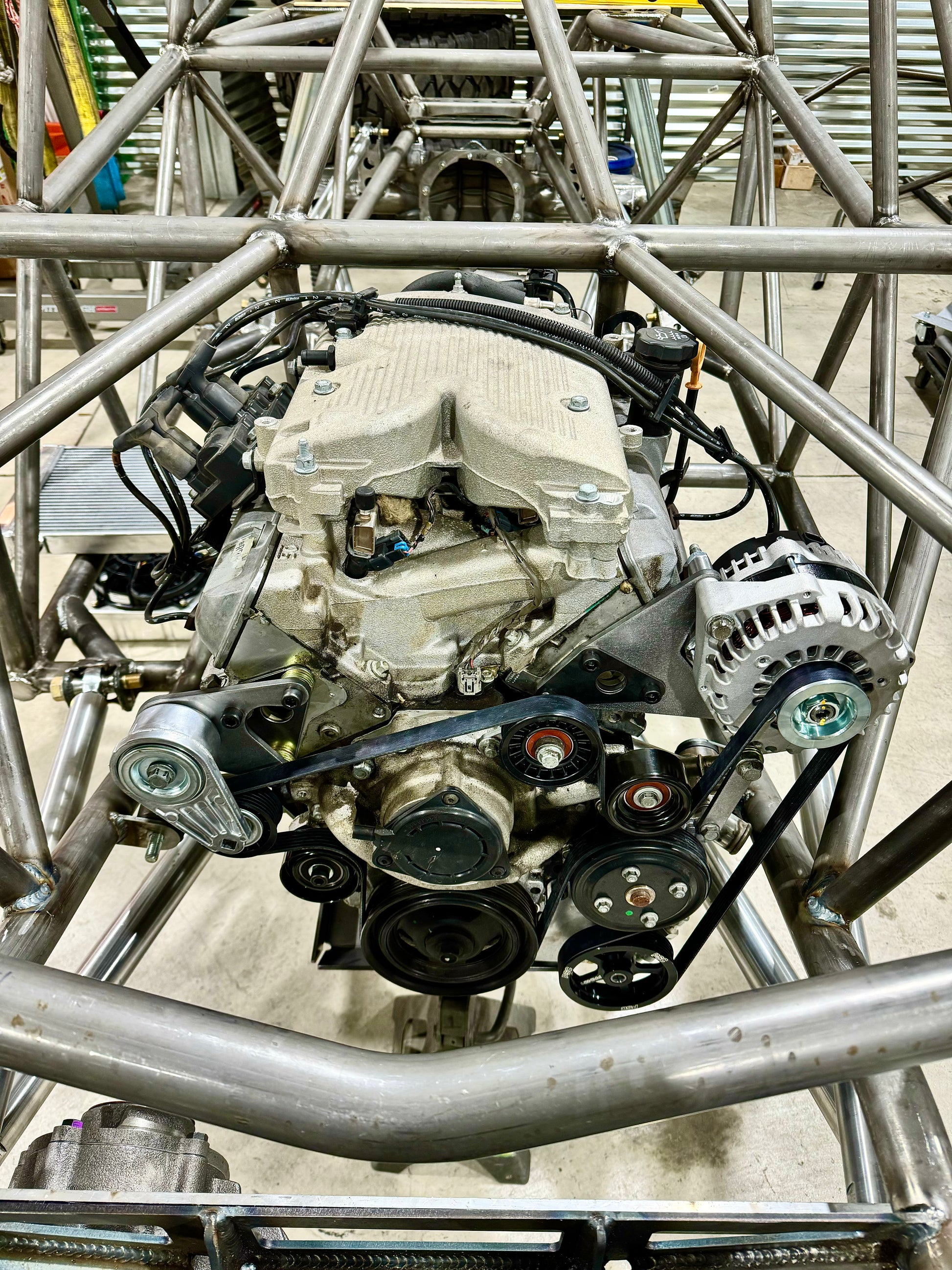

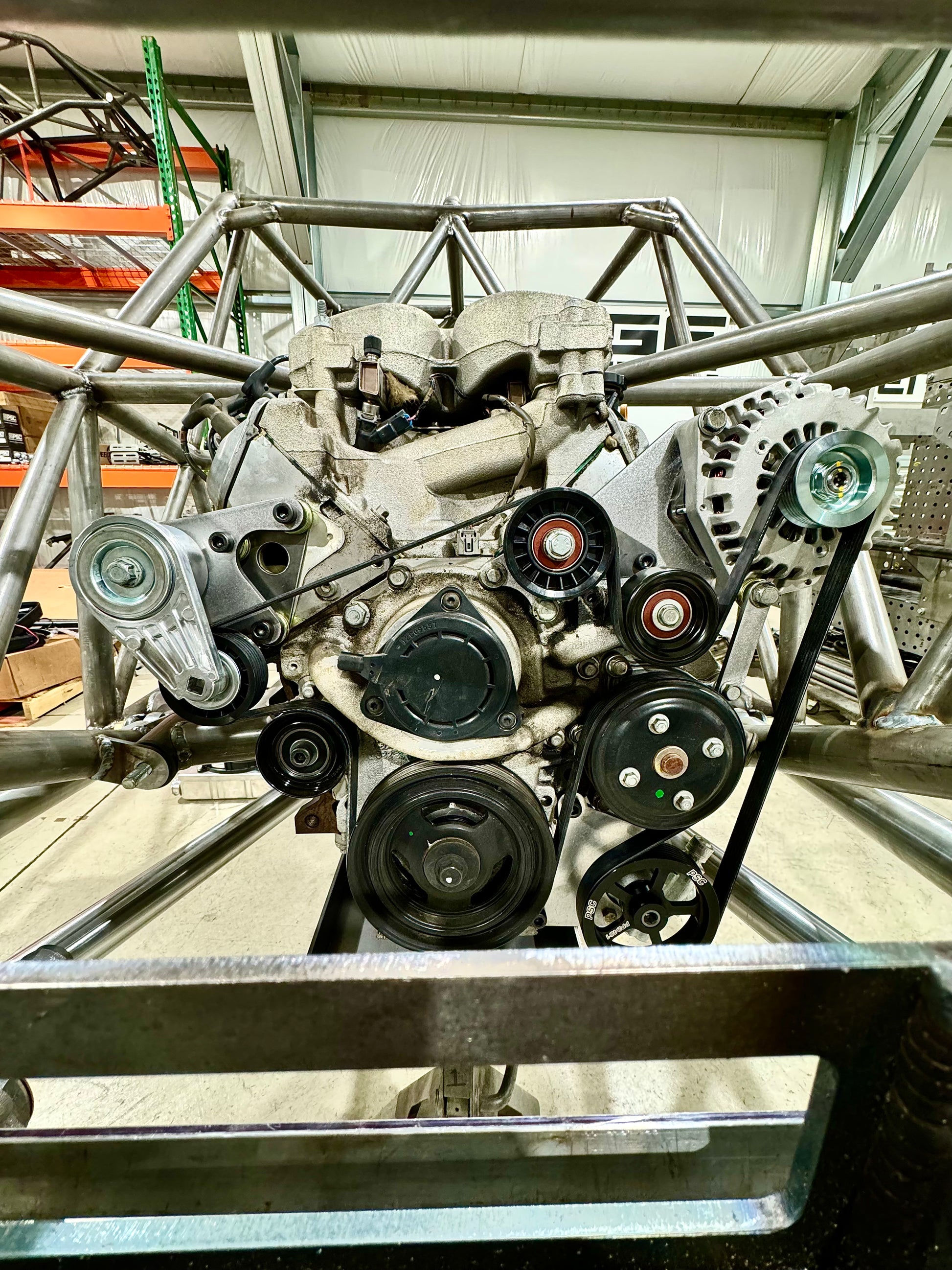

GM 3.9L V6 Accessory Bracket Kit

Accessory drive kit for the GM 3.9L 60* V6 motor, such as the LZ9.

Key Features:

CBR pump mount, low for better head pressure and less cavitation while climbing

180* or more of belt engagement on every accessory

Real automatic belt tensioner

Front intake or rear intake compatible

Front water crossover or rear water crossover compatible

LS truck style alternator found at any parts store in the nation

4.5"-6" pump pulley clearance, recommended to running the 4.5" pulley for better performance

Super compact and tons of diff clearance for passenger drop portal axles

Kit Includes:

All brackets for accessories

Water crossover plates with 1” holes for building your own crossover

Water crossover block off plates for other side of heads, front or rear compatible

All correct length metric flanged bolts like factory

Custom machined aluminum spacers for correct belt alignment on all pulley's (not stacked washers as seen in pics)

All idler pulleys

OEM Gaskets for water crossovers

Customer will need to provide belt tensioner, alternator, CBR pump and pulley, and belt. All of which I will provide part numbers and vehicle cross references for.

Alternator - 2002 Chevrolet Silverado 1500 5.3L 145amp, Ultima#N112011A, or any LS Style Alternator with 5.46" Bolt Spacing (most typical LS swap alternators) and 4 pin Connector (allows 1 wire operation with 470ohm resistor on a 12v IGN supply wire to Load/Lamp/Pin B on connector). Also fits newer 2006+ Alternators for the same vehicle with 2 pin connector if your harness is setup for ECM control of alternator.

Tensioner - 2008 Ford Ranger 4.0L, Ford#6L2Z6B209A

All brackets are laser cut from 12ga and 1/4" thick steel and come raw.

***Steering Pump bracket also available separately with just the one bracket to mount the CBR pump and associated hardware for that single bracket. You will need to figure out your own mounting for all other accessories and belt routing. ***
