Trail Chassis Seat Mounting Tabs

Seat Mounting Tabs for the Trail Chassis

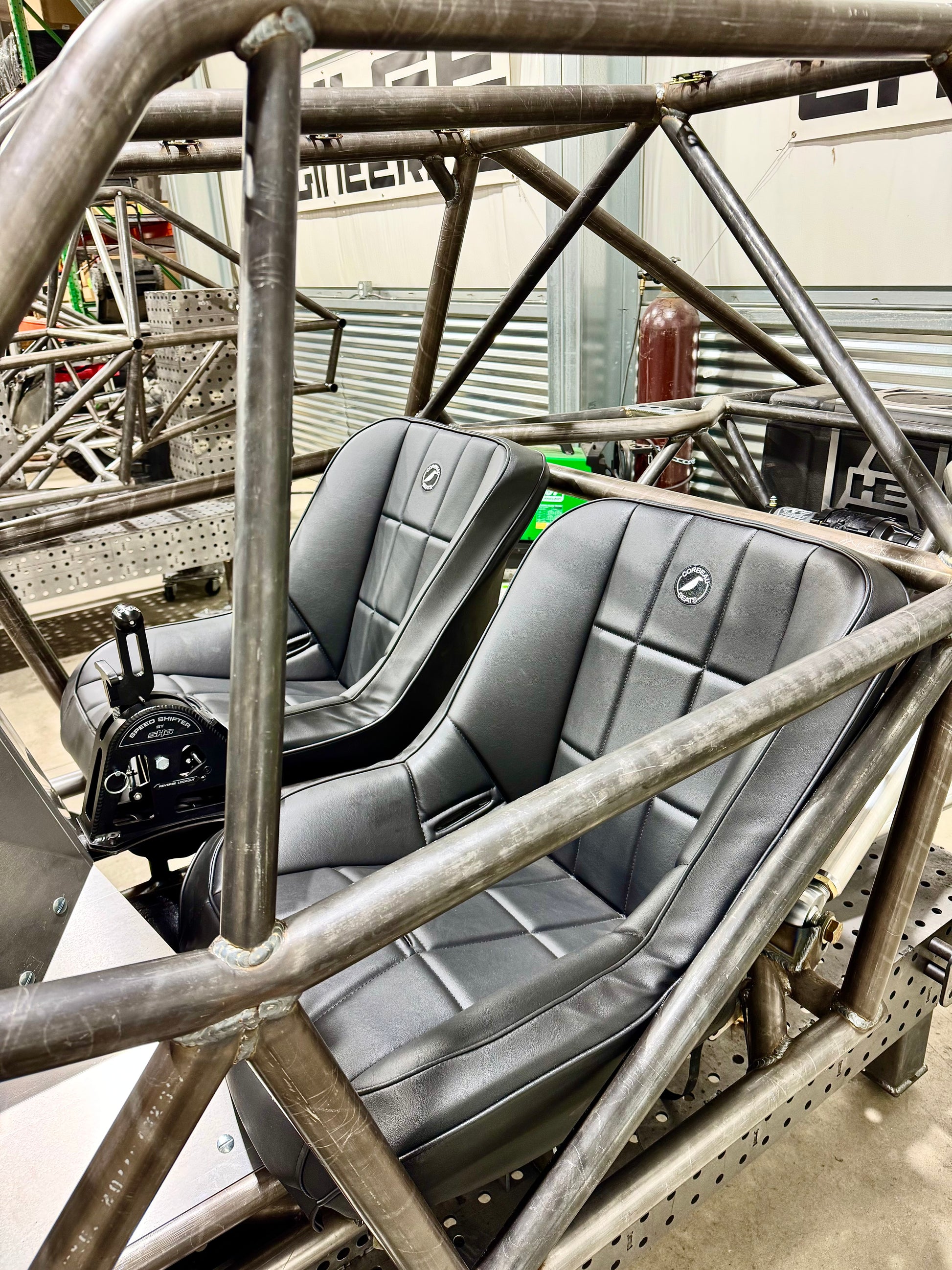

Includes Tabs for the Driver and Passenger seat

Will fit the standard Trail Chassis or the XL Trail Chassis

Designed to fit most universal offroad suspension seats with 4 tab,14"x18" mounts. Will require tab holes to be drilled out to 1/2".

Designed to use 1/2" bolts or 1/2 quick release pins (not included) in double shear. I recommend these pins from A&A Manufacturing,

AA-421-B Quick Pin Fits 1/2" Hole - A&A Manufacturing

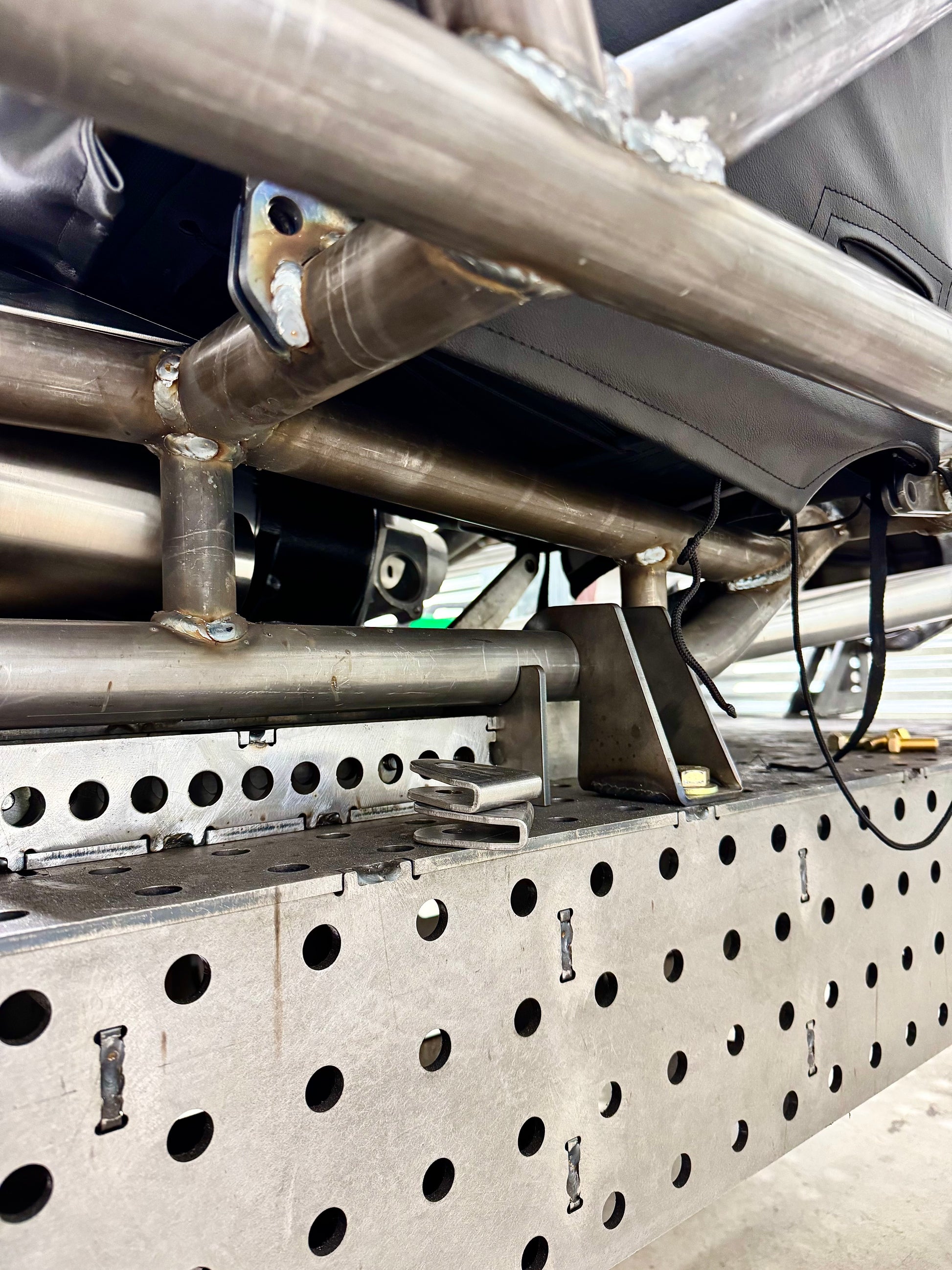

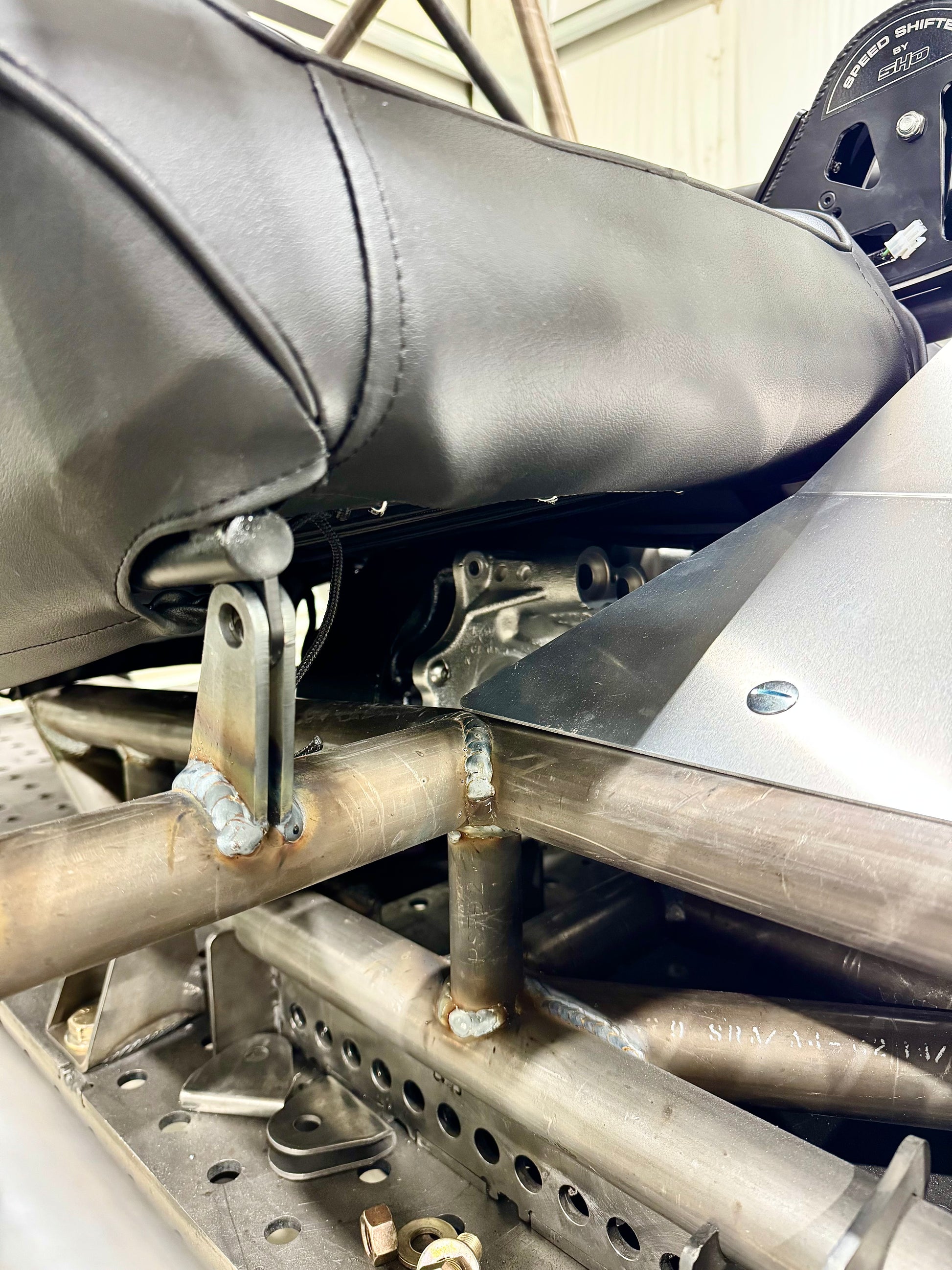

Will require modification of inside rail on both seats for tcase clearance and removal of front inside tab on both seats. Only the front outside tab and back tabs will be mounted on both seats. I recommend cutting the inside rail out just in front of the rear tab and moving it up higher to clear the tcase. You can also leave the rail in place and make a "C-notch" for just the area that hits the tcase.

Mounting tabs might require some modification to fit properly with your seats. It's been found that every brand seat is slightly different and even the same seats from the same brand vary seat to seat.

Includes mounts for driver and passenger seat only, bolts/pins not included.
