Trail Gear 9"/JFH Portal Axle Link Tab Kit

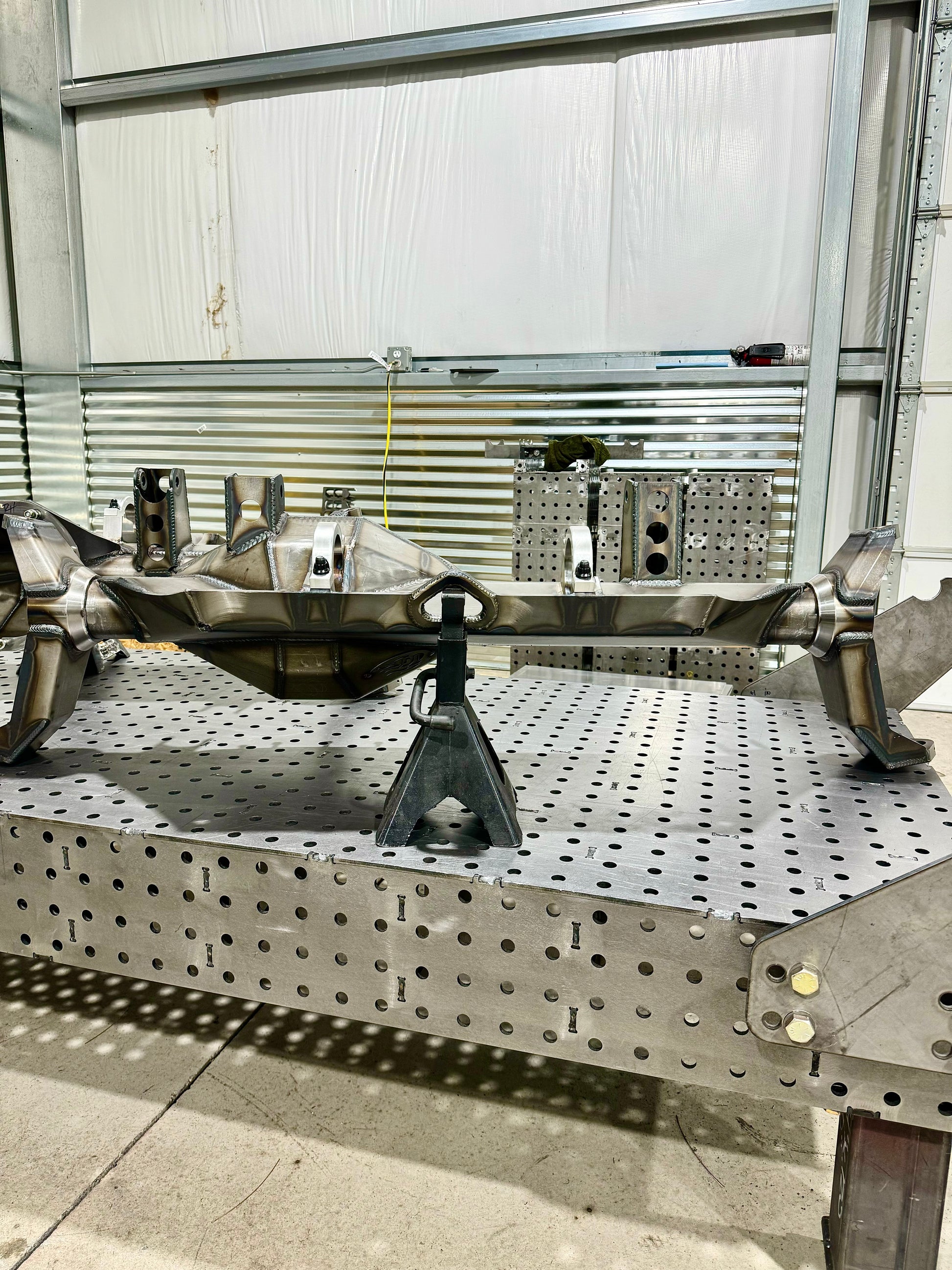

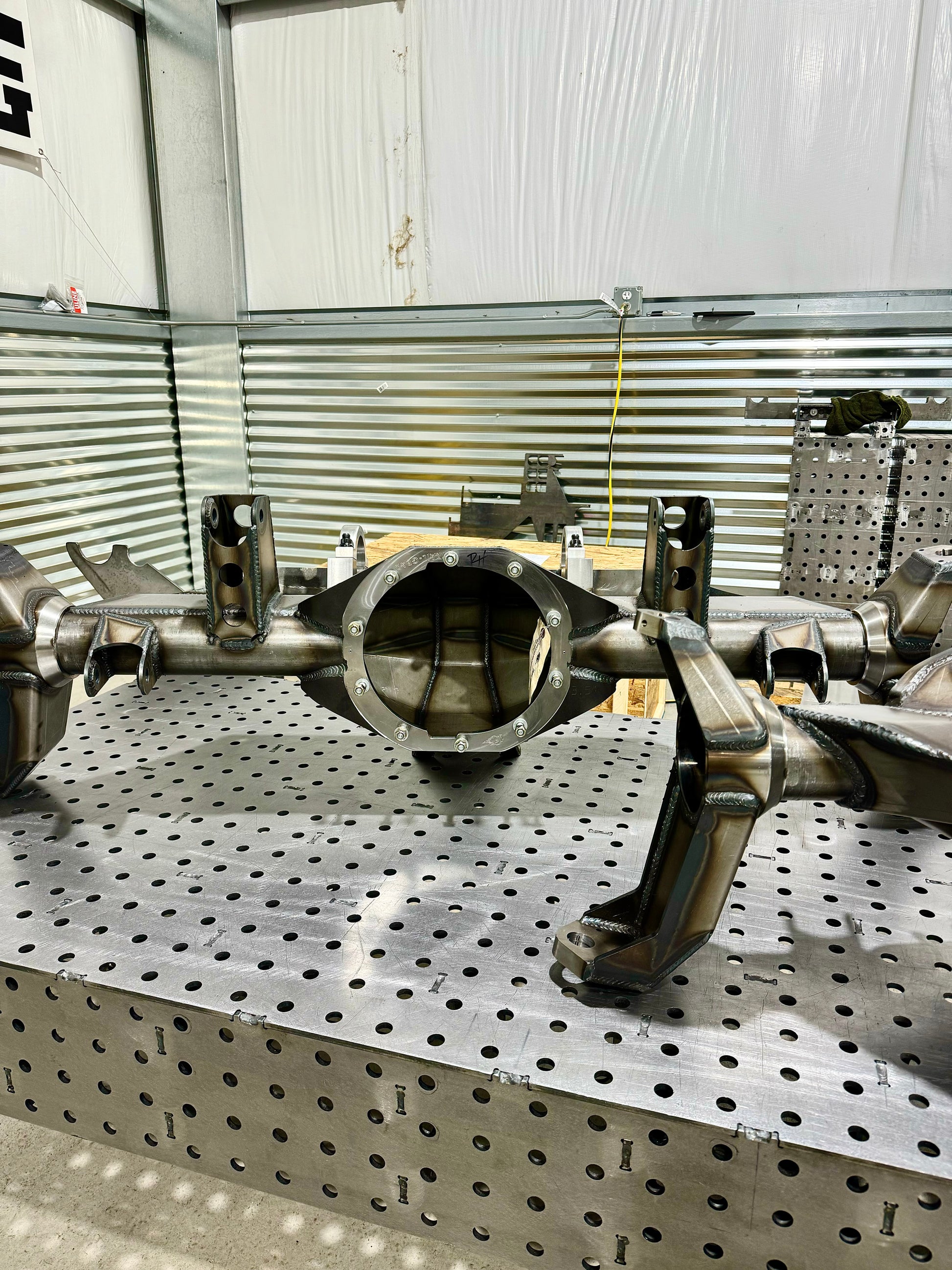

Axle link tab kit for Trail Gear 9" housings and JHF Portals using our Ram Mount/Truss/Skids or a universal application. Included tabs for front and rear.

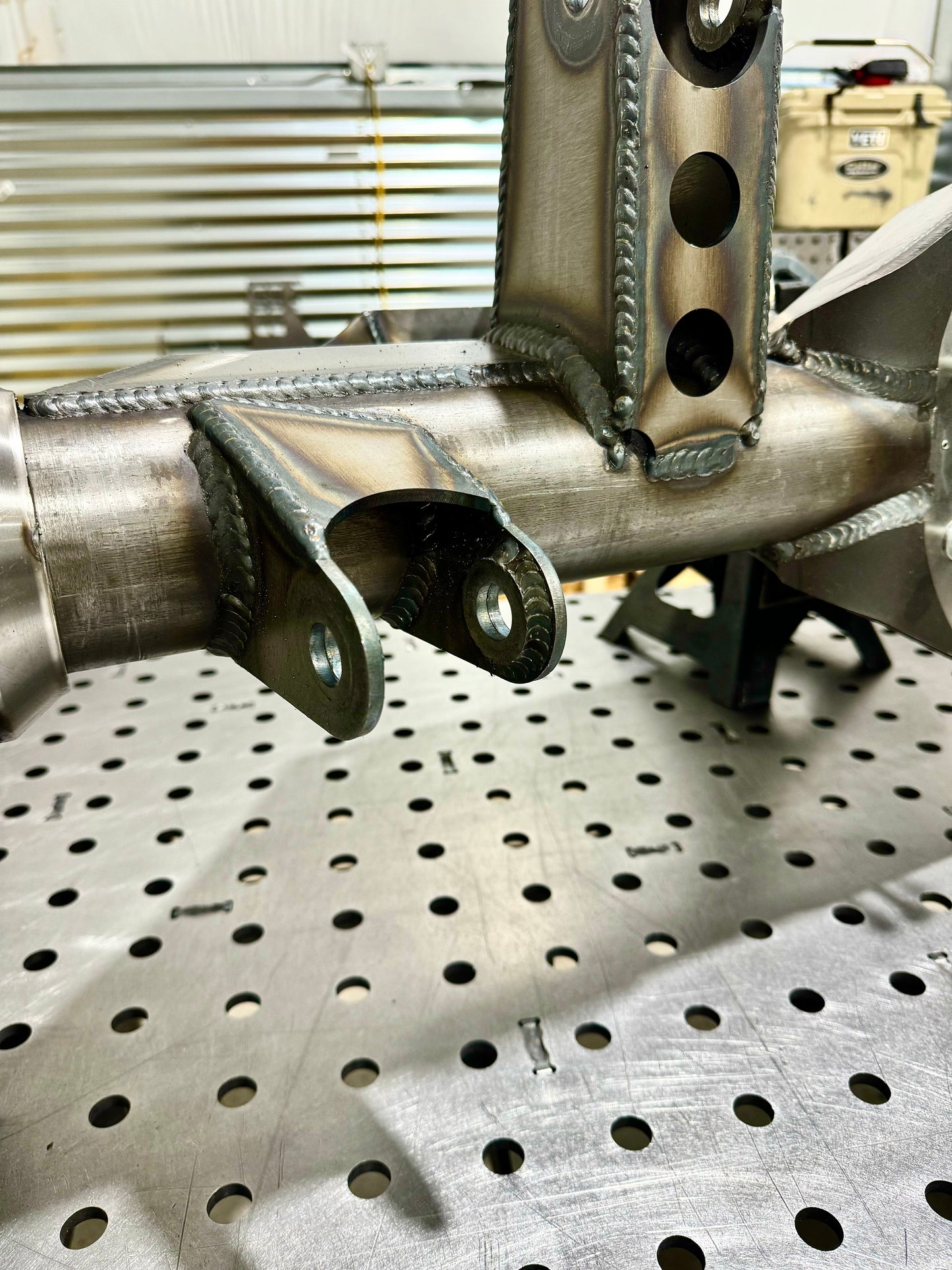

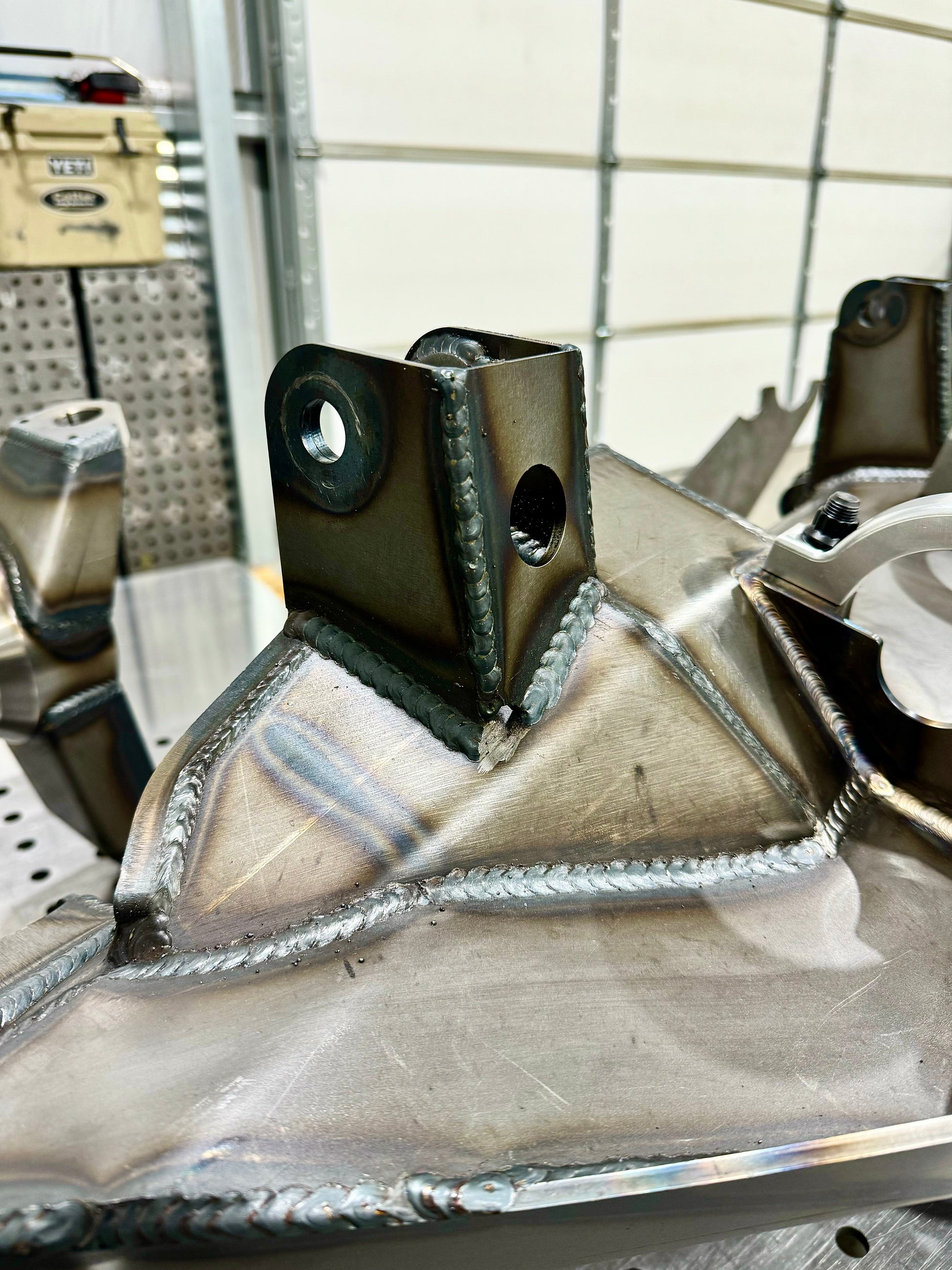

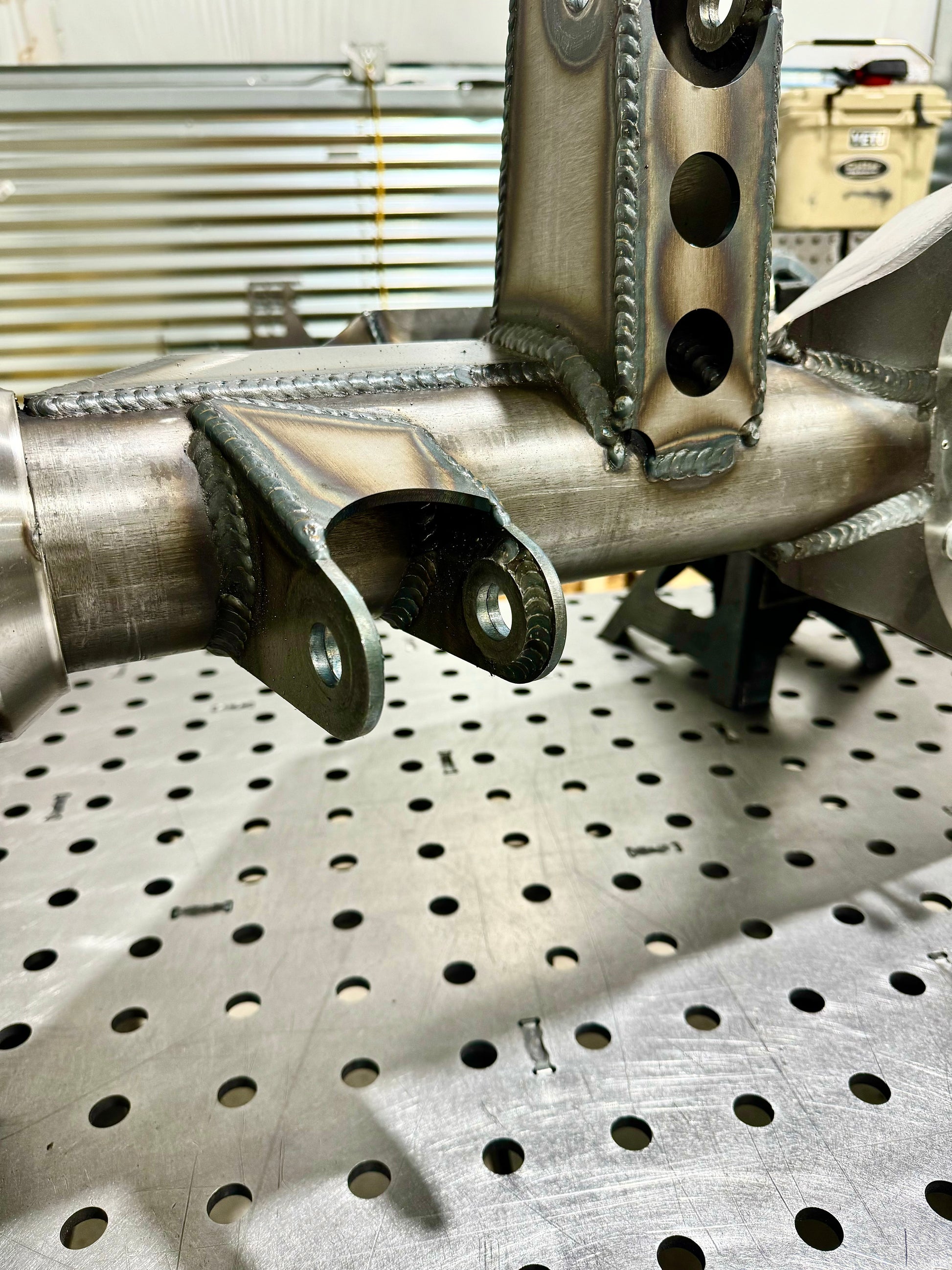

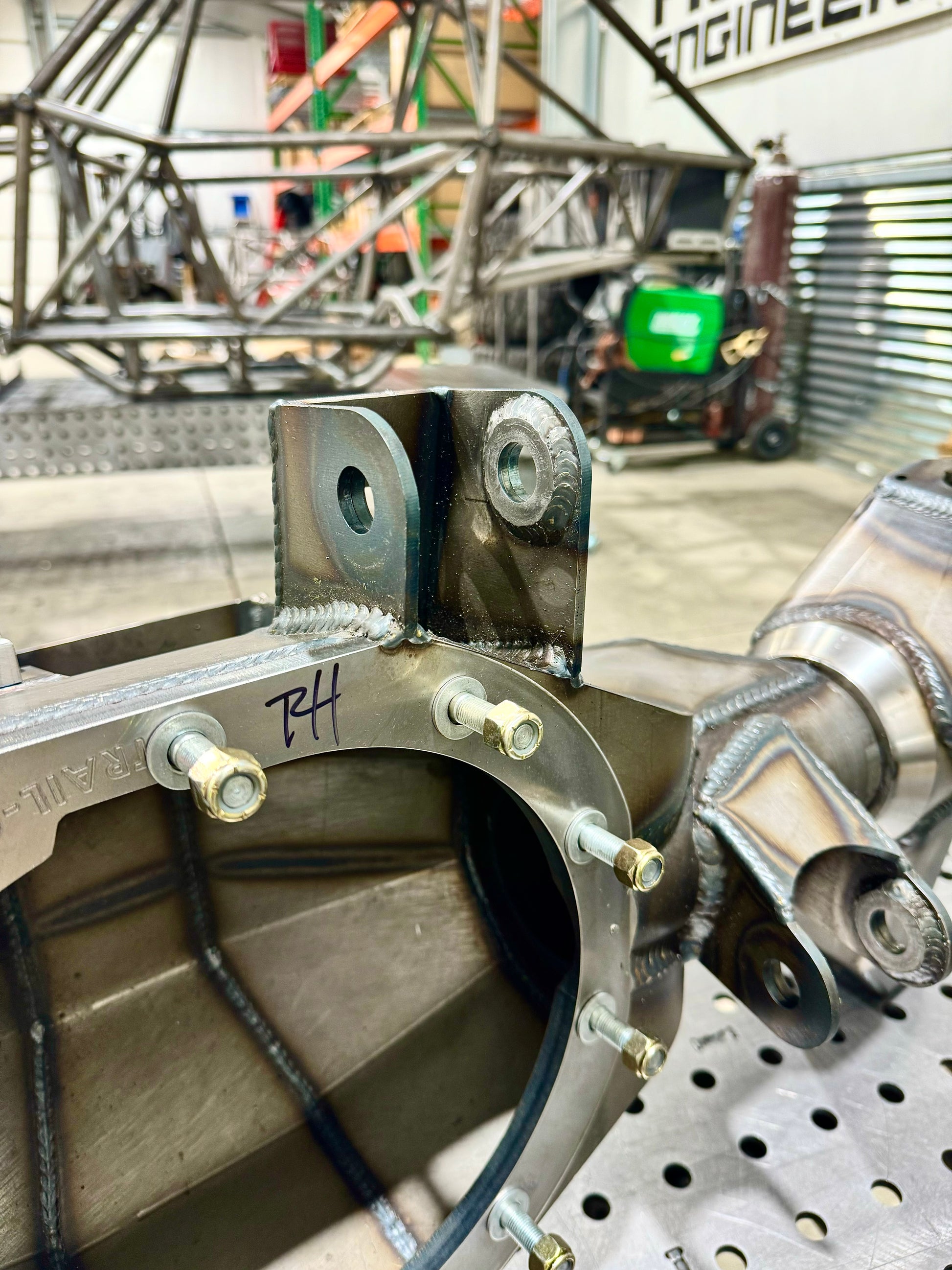

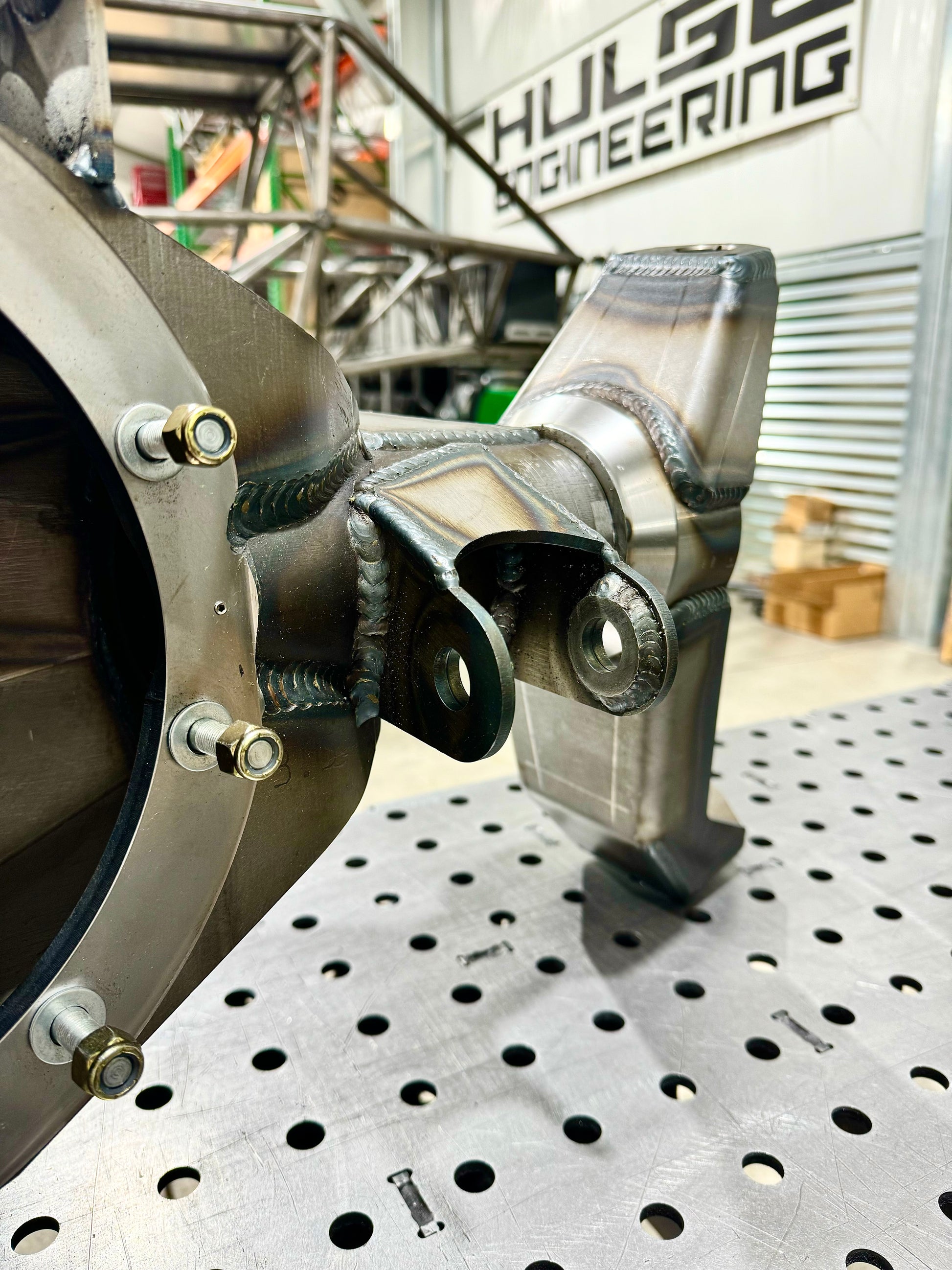

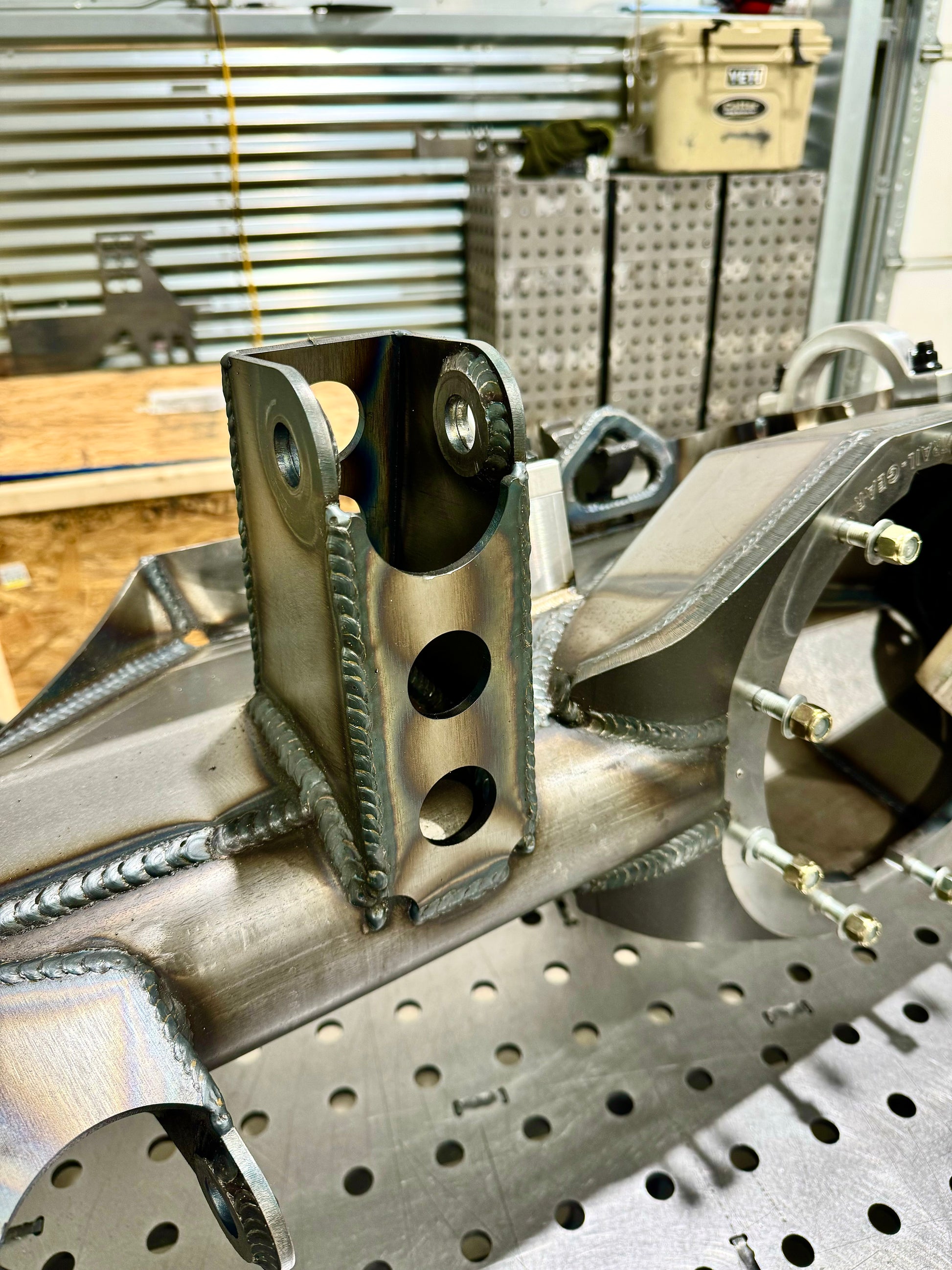

These tabs are laser cut out of 3/16" HRPO and include the axle side lower link tabs and upper link tabs for a front and rear steer axle with JHF portal C's.

This link tab kit is specifically designed for use with Trail Gear 9" Housings ONLY. It is also specifically designed for an 8" front diff offset (the stamped diff itself, not the pinion) either passenger or driver and a centered rear diff. It will not work with other housings or other offsets without modification and replacing some of the tabs. There are two versions, one is specifically designed to work with our Trail Gear 9" Ram mount/truss/skids, and the other is designed for universal application on a bare Trail Gear 9" housing with your own ram mounts/truss/skid/etc. If you are not running our ram mount/truss/skids front and rear, please order the universal option kit as the other version won't work! The ram mount/truss/skids are available to purchase separately.

These are made for 2" width joints only, they will not fit 2.625" width joints. Lower link tabs can fit 1.25" heims or 7/8" heims with a 3/4" bolt. Upper link tabs can fit 7/8" heims or 3/4" heims with a 3/4" bolt.

If running 1.25" lower link heims, you will need to order these heim misalignment spacers from Kartek to achieve a 2" mounting width (part# KTKHMA10034JR).

17-4 Stainless Steel Misalignment Spacer For 1" Heim Or Uniball For 3/4" Bolt 2" Stack Height - Kartek Off-Road

The link geometry is specifically setup for use with our Trail Series Chassis running JHF Portals, but you could definitely use it for other applications or straight axles if the link locations work for you.

Installation note - All weld washers go on the inside of the tab, butted up against the heim.

This item ships for FREE!

Includes link tabs and weld washers only, jig plates for reference picture only.
