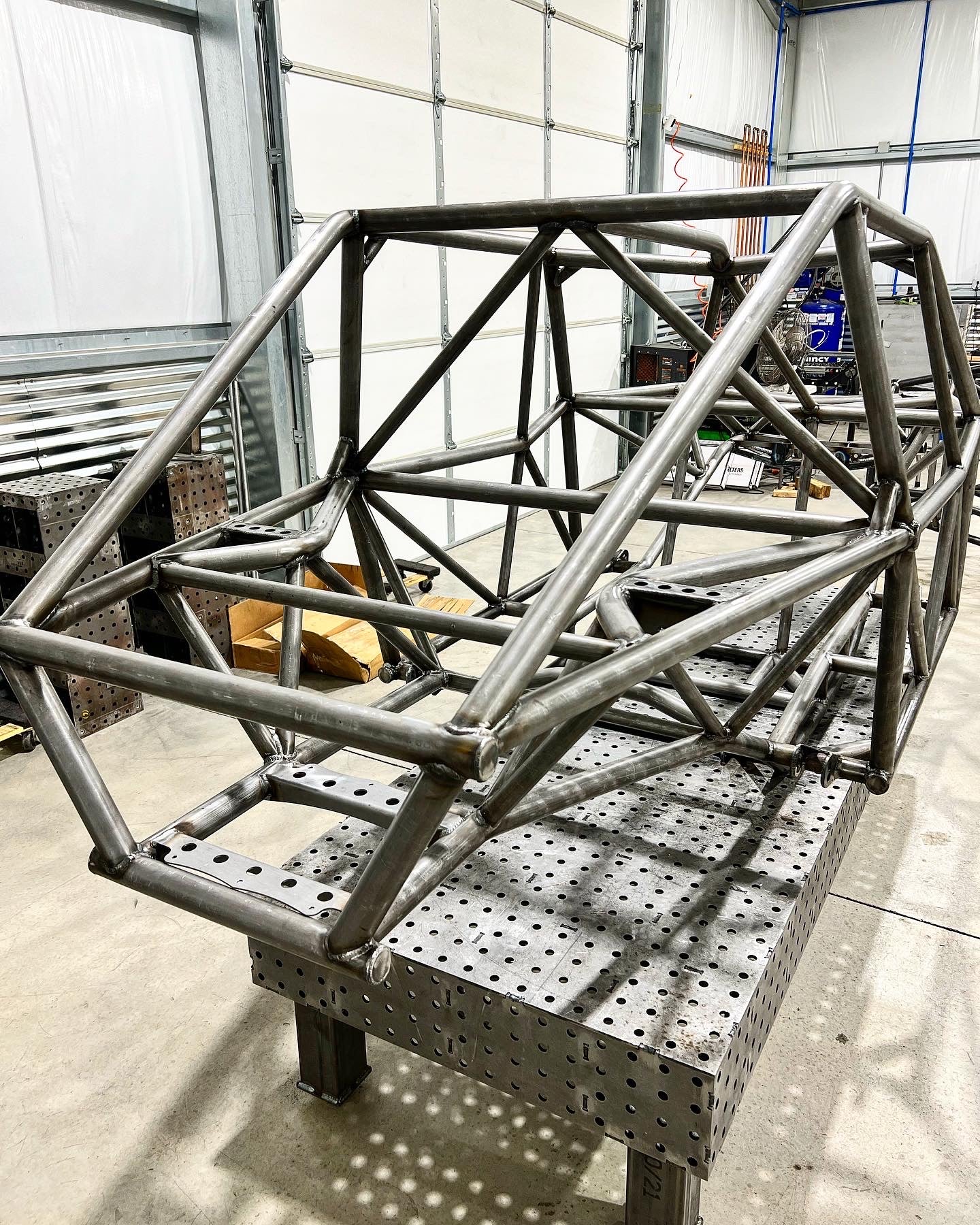

Trail series rock crawler chassis
2 seat version and 3 seat version
Jig Assembled and MIG tac'ed. Chassis is fully jig'ed to ensure everything is 100% correct and then MIG tac'ed, you will still need to fully weld out the chassis yourself.
48” wide chassis
Chassis are all 1.75x.120 DOM main tubes with 1.25x.120 inner support bars, subframe and rockers are 1.75”x.188
Each kit is CNC cut, bent, and etched with part numbers and outlines of tube junctions
Designed for a 108-112” WB
Designed for smaller drivetrains, such as a v6 or turbo 4cyl to allow room for a smaller front radiator, a V8 can tightly fit with a shorter transmission and a rear radiator
Shorter subframe ideally for a Dana 300 and passenger drop, Atlas would fit but require seat above it to be mounted 1-2” higher
Driver drop transfer case is not recommended unless driver is smaller height than average male adult, extensive modification to seat to clear transfer case will be required
Designed to run all axle styles, portals/Dana 60/14b/etc, recommended to run no less than 68” WMS, 70” WMS is recommended
Clearance for front and rear steering
Each kit is made to order, as such it will take 4-6 weeks to schedule and get produced at the CNC shop and then 1-2 weeks for assembly. These are estimates though and it could be shorter or longer.
