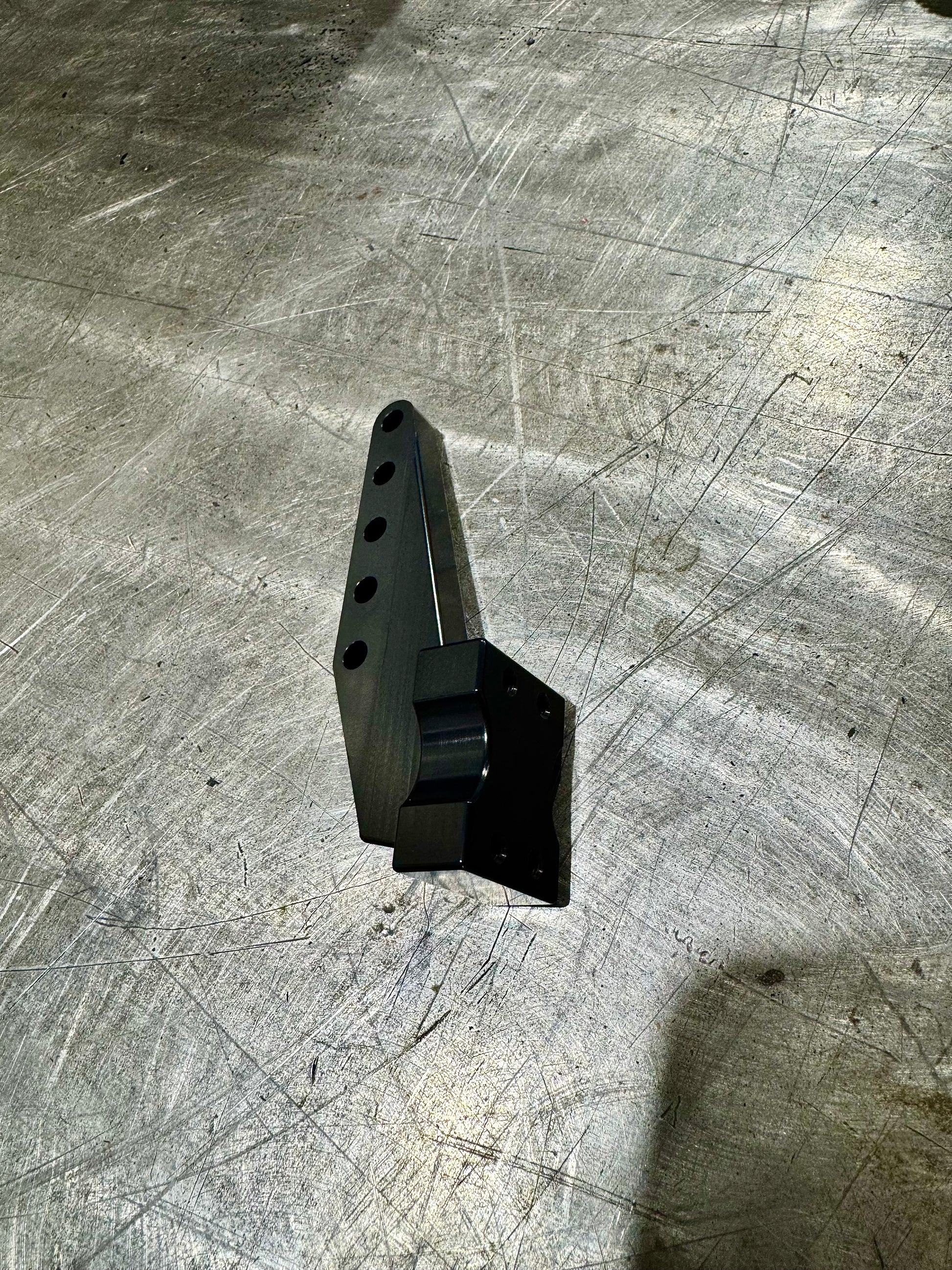

Wilwood Brake Pedal Pad Extension

Brake pedal extension for the Wilwood pedal pad

Made out of billet aluminum and anodized black

Allows for up to an additional 2.5" of pedal arm extension

Increases your brake pedal ratio from 7:1 up to 8.6:1, roughly a 20% increase in overall braking force without changing anything else.

Extends the pedal length of your Wilwood pedal to increase your pedal ratio to give you more stopping power, ideal for manual brake setups.

Works with Wilwood pedals with adjustable pedal head assembly, such as 340-16381, 340-16379, and 340-16388.

It's recommended to use 3 bolts to attach, not just 2 like the factory Wilwood pedal head to account for the added leverage of the extension.

Not for use on road driven vehicles, off road use only.

Warning: INSTALLATION OF THIS COMPONENT SHOULD ONLY BE PERFORMED BY PERSONS EXPERIENCED IN THE INSTALLATION AND PROPER OPERATION OF DISC BRAKE SYSTEMS. IT IS THE RESPONSIBILITY OF THE PERSON INSTALLING ANY BRAKE COMPONENT TO DETERMINE THE SUITABILITY OF THE COMPONENT FOR THAT PARTICULAR APPLICATION. BEFORE OPERATING VEHICLE, TEST THE BRAKES UNDER CONTROLLED CONDITIONS, MAKE SEVERAL STOPS IN A SAFE AREA FROM LOW SPEEDS AND GRADUALLY WORK UP TO HIGHER SPEEDS. DO NOT DRIVE ON UNTESTED BRAKES! ALWAYS UTILIZE SAFETY RESTRAINT SYSTEMS WHILE OPERATING VEHICLE. HULSE ENGINEERING IS NOT LIABLE OR RESPONSIBLE FOR ANY INCORRECT INSTALATION OR FAILURE OF BRAKE PEDAL ASSEMBLY.
